(8-44) - BACKHOE CONTROL VALVE - DUKES, CONTROL LEVERS, D100 OR D100XR BACKHOE

Запчасти Case 1838 (8-44) - BACKHOE CONTROL VALVE - DUKES, CONTROL LEVERS, D100 OR D100XR BACKHOE (08) - HYDRAULICS

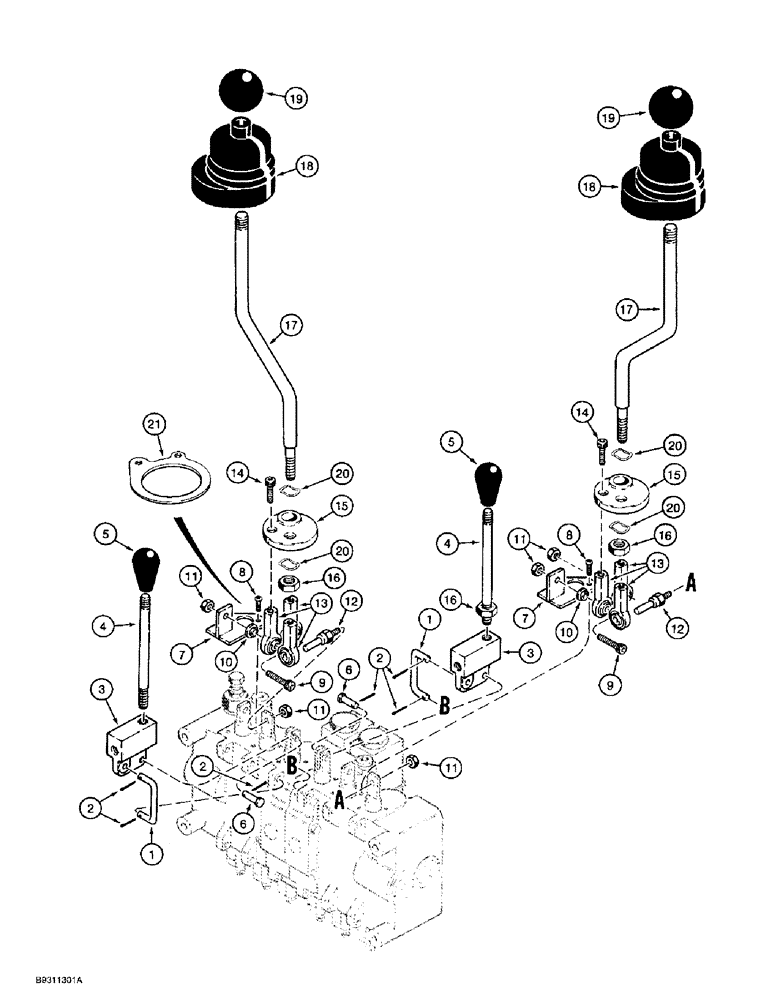

Схема запчастей Case 1838 - (8-44) - BACKHOE CONTROL VALVE - DUKES, CONTROL LEVERS, D100 OR D100XR BACKHOE (08) - HYDRAULICS
18
20
3
16
15
15
20
12
10
7
8
6
13
21
13
20
20
8
2
17
17
1
10
11
2
5
9
19
2
11
16
9
7
1
5
12
11
16
14
11
4
6
14
18
4
3
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674300

VALVE

ASSEMBLY, control, backhoe, manufactured by Dukes, complete parts list on Figures 8-44 through 8-50, Includes Ref. 1-21

1шт.

1

H438042

ARM

LINK C-type

2шт.

2

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

6шт.

3

H438043

BLOCK ASSY.

BLOCK pivot

2шт.

4

100406A1

LEVER

stabilizer section, 5-1/4 inch long

2шт.

5

L50256

KNOB

lever

2шт.

6

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

2шт.

7

H438950

LARGE PLATE

BRACKET dual control lever

2шт.

8

62-31010

SCREW,Hex Soc Hd, #10-32 x 5/8"

BOLT hex socket, No. 10 NF x 5/8 inch

4шт.

9

62-32516

HEX SOC SCREW,1/4"-28 x 1"

BOLT hex socket, 1/4 NF x 1 inch

2шт.

10

H438035

SPACER

bracket

2шт.

11

H438943

JAM NUT

hex, special

6шт.

12

H438038

STUD

special

2шт.

13

H438025

ROD

END rod, dual control lever plate

6шт.

14

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

BOLT hex socket, 1/4 NF x 3/4 inch

4шт.

15

H438944

ADAPTER

PLATE dual control lever

2шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

2шт.

17

H438022

LEVER

dual control

2шт.

18

H438946

PROTECTOR

BOOT dual control lever, used with Ref. 15 adapter

2шт.

19

H152207

BALL KNOB

KNOB lever, dual control

2шт.

20

H438956

WASHER

spring, special

4шт.

21

H438951

LARGE PLATE

PLATE boot retaining

2шт.
