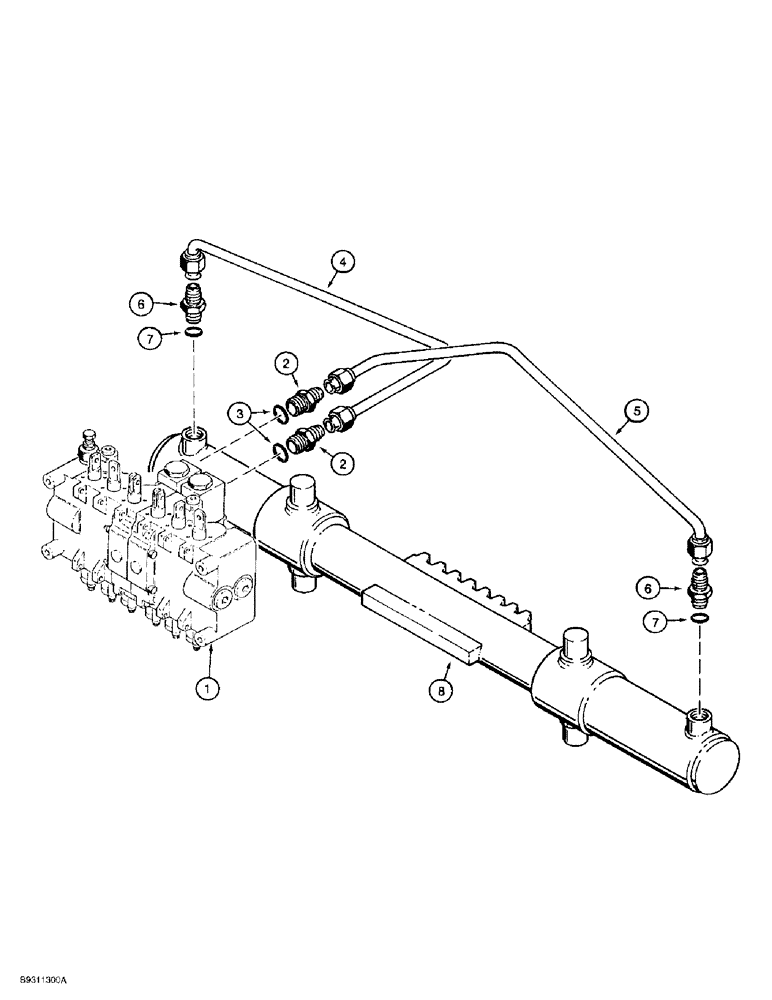

Запчасти Case 1838 (8-42) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, D100 OR D100XR BACKHOE (08) - HYDRAULICS

1

H674300

VALVE

ASSEMBLY, control, backhoe, manufactured by Dukes, parts list Figures 8-44 through 8-50

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H674419

TUBE,0.5" OD

swing cylinder, left hand side

1шт.

5

H674420

TUBE,0.5" OD

swing cylinder, right hand side

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY, swing, 70 mm, 2-3/4 inch ID x 203 mm, 8 inch stroke, parts list Figure 8-62

1шт.
