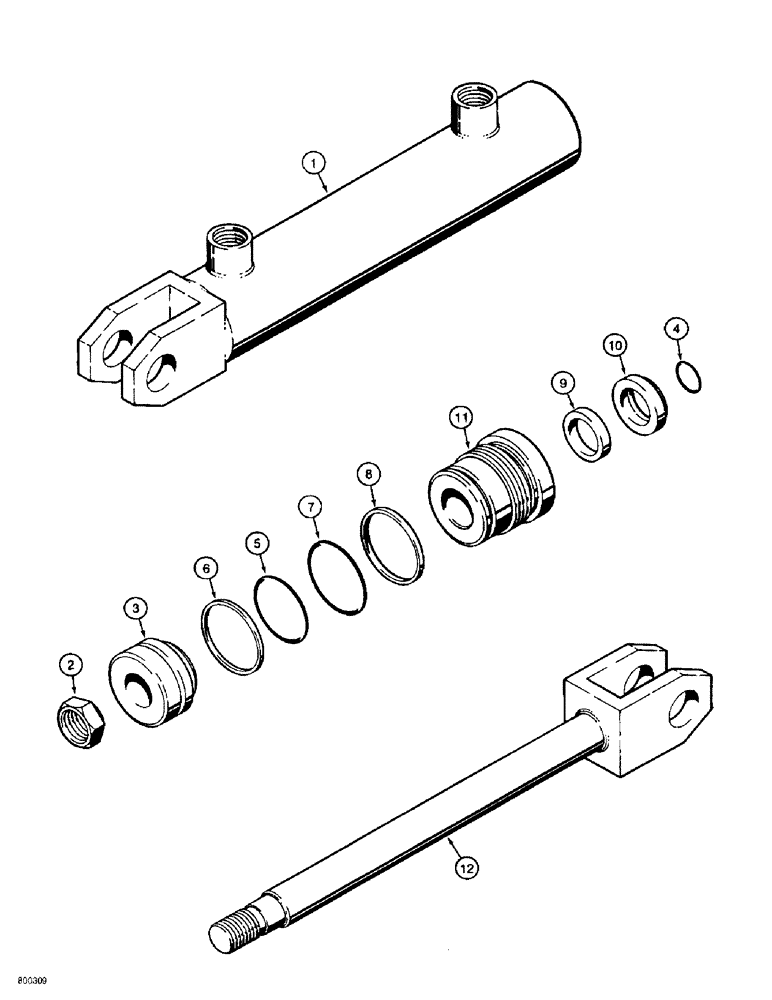

Запчасти Case 1838 (8-30) - GRAPPLE CYLINDER (08) - HYDRAULICS

D61075

CYLINDER

ASSEMBLY, grapple, 51 mm, 2 ID x 203 mm, 8 inch stroke, see Figure 9-15 for mounting hardware, Includes Ref. 1-12

2шт.

1

D61010

TUBE

cylinder

1шт.

2

425-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NF

1шт.

3

D60996

PISTON

cylinder

1шт.

4

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Piston Rod

1шт.

Part of seal kit D61006

1шт.

5

238-5129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

Part of seal kit D61006

1шт.

6

D60995

RING

backup, piston O-ring

1шт.

Part of seal kit D61006

1шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

Part of seal kit D61006

1шт.

8

A185082

BACK-UP RING

RING backup, gland O-ring

1шт.

Part of seal kit D61006

1шт.

9

D60999

WIPER SEAL

SEAL U-cup, piston rod

1шт.

Part of seal kit D61006

1шт.

10

D60997

WIPER SEAL

WIPER piston rod, outer

1шт.

Part of seal kit D61006

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61011

ROD

piston, 25 mm, 1 inch diameter

1шт.

D61006

GASKET KIT

KIT seal, Includes: Ref. 4-10

1шт.
