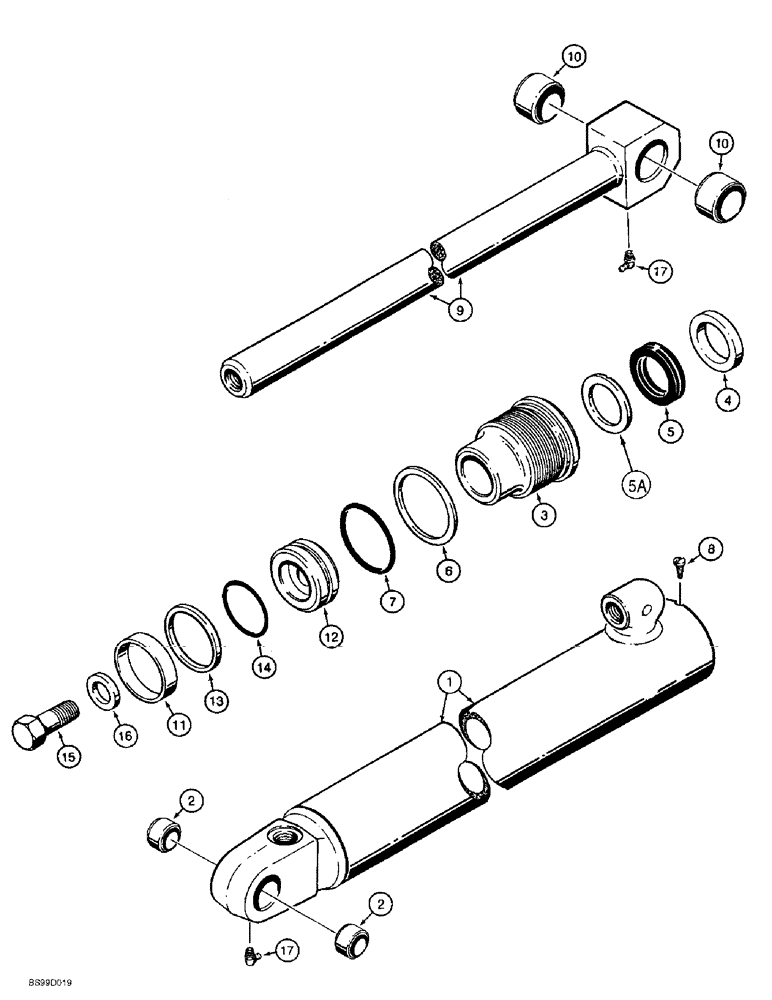

Запчасти Case 1838 (8-26) - LOADER LIFT CYLINDER (08) - HYDRAULICS

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, loader lift, 64 mm, 2-1/2 ID x 679 mm, 26-3/4 inch stroke, see Figure 9-4 for mounting hardware, Includes Ref. 1-17

2шт.

1

117825A1

TUBE,63.42 mm ID, 862 mm Length

ASSEMBLY, cylinder, Includes Ref. 2

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes Ref. 3, 4, and P/N 1542874C1

1шт.

3

117830A2

GLAND

cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit 128725A1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Wide and narrow, Incl Ref 5, 5A

1шт.

Part of seal kit 128725A1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL rod, order 128725A1 kit below

1шт.

5a

NSS

NOT SOLD SEPARAT

SEAL buffer, order 128725A1 kit below

1шт.

6

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit 128725A1

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of seal kit 128725A1

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

9

242311A1

PISTON ROD

ROD ASSEMBLY, piston, 38 mm, 1-1/2 inch diameter, Replaces: G106824 and 175657A1 rod assembly, Includes Ref. 10

1шт.

10

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod, Replaces: G32050 bushing

2шт.

G35267

PISTON ASSY.

PISTON ASSEMBLY, cylinder, Includes Ref. 11-14

1шт.

11

G100714

RING

wear

1шт.

Part of seal kit 128725A1

1шт.

12

S220090

PISTON

cylinder, Replaces: G104100 piston

1шт.

13

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of seal kit 128725A1

1шт.

14

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

Part of seal kit 128725A1

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

128725A1

SEAL KIT

KIT seal, Includes: Ref. 4, 6, 7, 11, 13, 14 and P/N 1542874C1, Includes an instruction sheet and 238-5230 O-ring and G32129 backup ring not used in this assembly

1шт.
