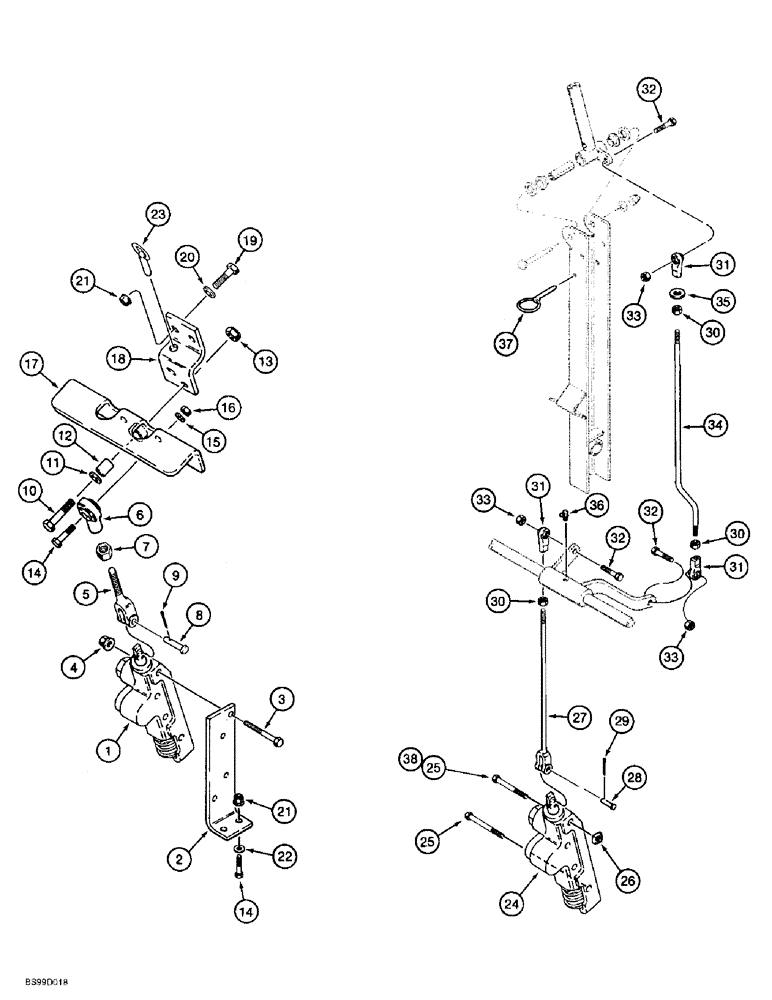

Запчасти Case 1838 (8-22) - AUXILIARY CONTROL VALVE & CONTROL MOUNTING, FOR HAND OPER LOADER CONTR., FOR FOOT OPER LOADER CONTRL (08) - HYDRAULICS

1

H674465

VALVE

ASSEMBLY, auxiliary control, parts list Figure 8-24

1шт.

2

121022A1

SUPPORT

BRACKET auxiliary control valve

1шт.

3

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

5

H439250

CLEVIS,3/8" - 24

ROD control

1шт.

6

D59922

BALL JOINT

JOINT ball, 3/8 inch NF

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

8

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

PIN clevis, special

1шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

12

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

pedal

1шт.

13

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

H673491

PEDAL

control valve

1шт.

18

H435821

BRACKET

pedal mounting

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

21

231-5146

FLANGE NUT,3/8"-16

4шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

23

D94535

PIN,9.52mm OD

locking, pedal bracket

1шт.

23a

H439275

SEALING STRIP

STRIP anti skid, cut from H433994 bulk strip, see below, not shown, 76 mm, 3 inch x 76 mm, 3 inch

2шт.

24

H674465

VALVE

ASSEMBLY, auxiliary control, parts list Figure 8-25 , used on models with foot operated loader controls

1шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch, used on models with foot operated loader controls

1-2шт.

26

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC, Used on models with foot operated loader controls

2шт.

27

H439251

ROD

valve connecting, used on models with foot operated loader controls

1шт.

28

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

PIN clevis, special, control rod, used on models with foot operated loader controls

1шт.

29

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Used on models with foot operated loader controls 1/16" x 1/2"

1шт.

30

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF, Used on models with foot operated loader controls

3шт.

31

D59922

BALL JOINT

JOINT ball, 3/8 inch NF, used on models with foot operated loader controls

3шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, used on models with foot operated loader controls

3шт.

33

232-4116

NUT,3/8"-16, GC

NUT, LOCK, , Used on models with foot operated loader controls 3/8"-16, GC

3шт.

34

D128257

ROD

control lever to cross shaft, used on models with foot operated loader controls

1шт.

35

495-81002

WASHER,3/8"

flat, 7/16 x 1-3/8 x 5/64 inch, used on models with foot operated loader controls

1шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Used on models with foot operated loader controls 90º, 1/8" NPT x .84" lg

1шт.

37

H437134

LINCH PIN,6.3mm OD

PIN self locking, used on models with foot operated loader controls

1шт.

38

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Used on models with foot operated loader controls Hex, 5/16"-18 x 2", G5

1шт.

H433994

BAND

STRIP anti-skid, bulk, 690 mm, 27 inch long, used on models with foot operated loader controls

1шт.
