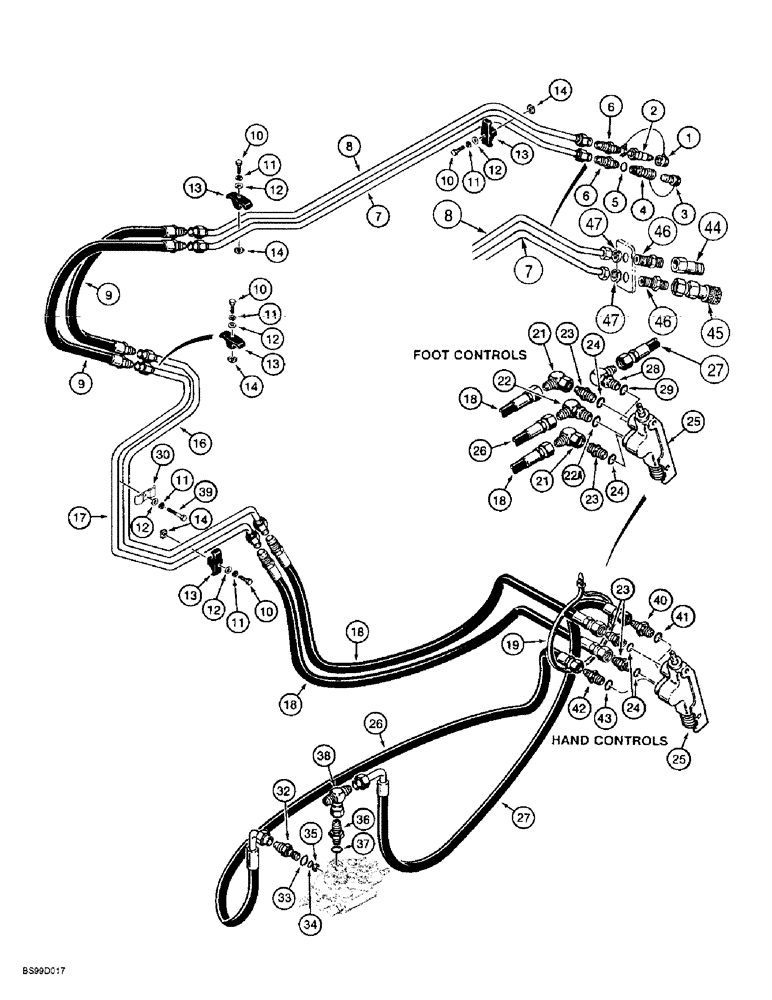

Запчасти Case 1838 (8-20) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

T40759

PLUG

dust, quick disconnect, prior to P.I.N. JAF0160832

1шт.

2

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, prior to P.I.N. JAF0160832

1шт.

3

T40274

CAP

PLUG dust, quick disconnect, prior to P.I.N. JAF0160832

1шт.

4

H436396

COUPLING

COUPLER self sealing, female, prior to P.I.N. JAF0160832, Includes Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, 7/8-14 flare x 1/2 inch PT, prior to P.I.N. JAF0160832

2шт.

7

H673489

TUBE ASSY.,15.88 mm OD x 1102.6, 200 mm L

TUBE lower, to quick disconnect

1шт.

8

H673490

TUBE ASSY.,15.88 mm OD

TUBE upper, to quick disconnect

1шт.

9

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

intermediate, 850 mm, 33-1/2 inch long

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3-4шт.

11

492-11038

LOCK WASHER,3/8"

3-4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3-4шт.

13

D120613

CLAMP,20mm ID

tube, spacer type

3-4шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3-4шт.

16

104014A1

HYD TUBE,360786 mm Length

TUBE crossover to intermediate hose, return, to A port of auxiliary control valve

1шт.

17

104012A1

HYD TUBE

TUBE crossover to intermediate hose, supply, from B port of auxiliary control valve

1шт.

18

D134508

HOSE

from tube at auxiliary control valve, 1750 mm, 68-7/8 inch long

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

21

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, 7/8-14 inch flare x swivel

2шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 22A

1шт.

22a

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 24

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

H674465

VALVE

ASSEMBLY, auxiliary control, parts list Figure 8-24

1шт.

26

130470A1

HOSE ASSY.,15.88mm ID x 2150mm L

HOSE supply, to "In" port of auxiliary control valve, 2150 mm, 84-5/8 inch long

1шт.

27

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

return, to "Out" port of auxiliary control valve, 1950 mm, 76-3/4 inch long

1шт.

28

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring boss, Includes Ref. 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

H435737

CLAMP

tube

1шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, not shown

1шт.

129878A1

FITTING

SLEEVE ASSEMBLY, power beyond, Includes Ref. 32-35

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

A52424

BACK-UP RING

RING backup, small O-ring

1шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare

1шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes Ref. 41

1шт.

41

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes Ref. 43

1шт.

43

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

44

122180A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, P.I.N. JAF 0160832 and after

1шт.

45

143431A1

COUPLING, QUICK, FEM

COUPLING quick disconnect, female, P.I.N. JAF 0160832 and after

1шт.

46

184602A1

FITTING

ADAPTER straight, P.I.N. JAF 0160832 and after

2шт.

47

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, , P.I.N. JAF 0160832 and after Blkhd, 7/8"-14

2шт.
