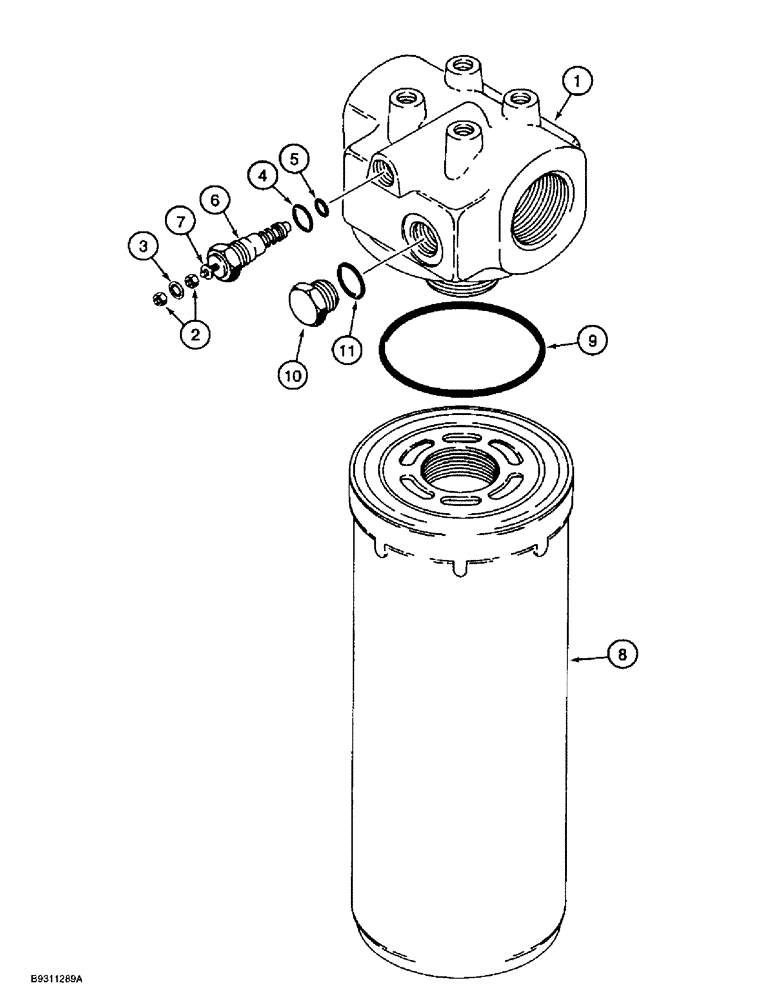

Запчасти Case 1838 (8-18) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D125507

FILTER

ASSEMBLY, hydraulic oil, see Figure 8-16 for mounting hardware and bracket, Includes Ref. 1 and 10 and P/N N13268 and D126922

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY, restriction, electrical, Includes Ref. 2-7

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER identification, red/white color

1шт.

D126922

FILTER, ELEMENT

ELEMENT ASSEMBLY, filter, Includes Ref. 8-9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter element to head -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 11 Hex Hd, 9/16"-18 ORB

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
