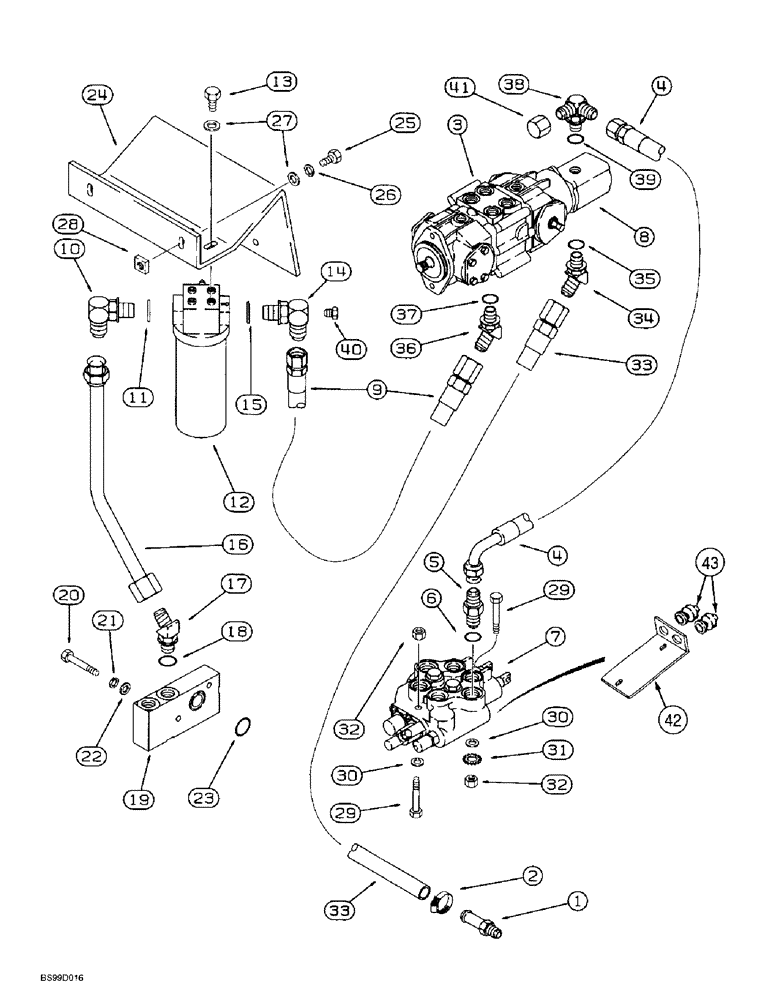

Запчасти Case 1838 (8-16) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, HYDRAULIC TANK TO LOADER CONTROL VALVE & TANDEM PUMP (08) - HYDRAULICS

1

217-156

FITTING,1" Hose Barb x 1" Male NPTF

ADAPTER straight, 1 inch stem end x PT

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Hydraulic tank hose #16, 0.81/1.50 Type F Worm

1шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY, tandem and gear, see Figure 6-13 or 6-19B for correct assembly and parts list

1шт.

4

140376A1

HOSE

pump to loader control valve, 870 mm, 34-1/4 inch long

1шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

108222A1

VALVE

ASSEMBLY, loader control, parts list Figure 8-10

1шт.

8

134535A1

PUMP

ASSEMBLY, gear, parts list Figure 6-10

1шт.

9

D134373

HOSE ASSY.,19.05mm ID x 1550mm L, SAE 100R1

HOSE tandem pump to hydraulic filter, 1550 mm, 61 inch long

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, Incl. Ref. 11

2шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

D125507

FILTER

ASSEMBLY, hydraulic oil, parts list Figure 8-18

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

14

139905A2

FITTING

ELBOW 90 degree, special, Includes Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

104505A1

TUBE,25.4 mm OD, 371, 123 mm Length

filter to manifold

1шт.

17

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45º,, 1-5/16-12 flare x 1-1/16-12 inch adj. O-ring, Includes Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

124460A1

TUBE ASSY.

MANIFOLD ASSEMBLY, check valve, components not serviced separately

1шт.

20

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

23

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

24

H436198

BRACKET

mounting, oil filter

1шт.

25

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

28

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

29

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

30

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

2шт.

31

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch, if used

1шт.

32

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

33

132997A1

HOSE

tank to gear pump inlet,1350 mm, 53-1/8 inch long

1шт.

34

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, 1-5/16-12 inch flare x adj. O-ring boss, Includes Ref. 35

1шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

36

218-5528

ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring

45 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring, Includes Ref. 37

1шт.

37

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

38

124915A1

TEE

special

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

1шт.

41

218-756

CAP,37 Degree, 7/8"-14

1шт.

42

194403A2

SUPPORT

RETAINER boot

1шт.

43

195614A1

BOOT

rubber, loader valve

2шт.
