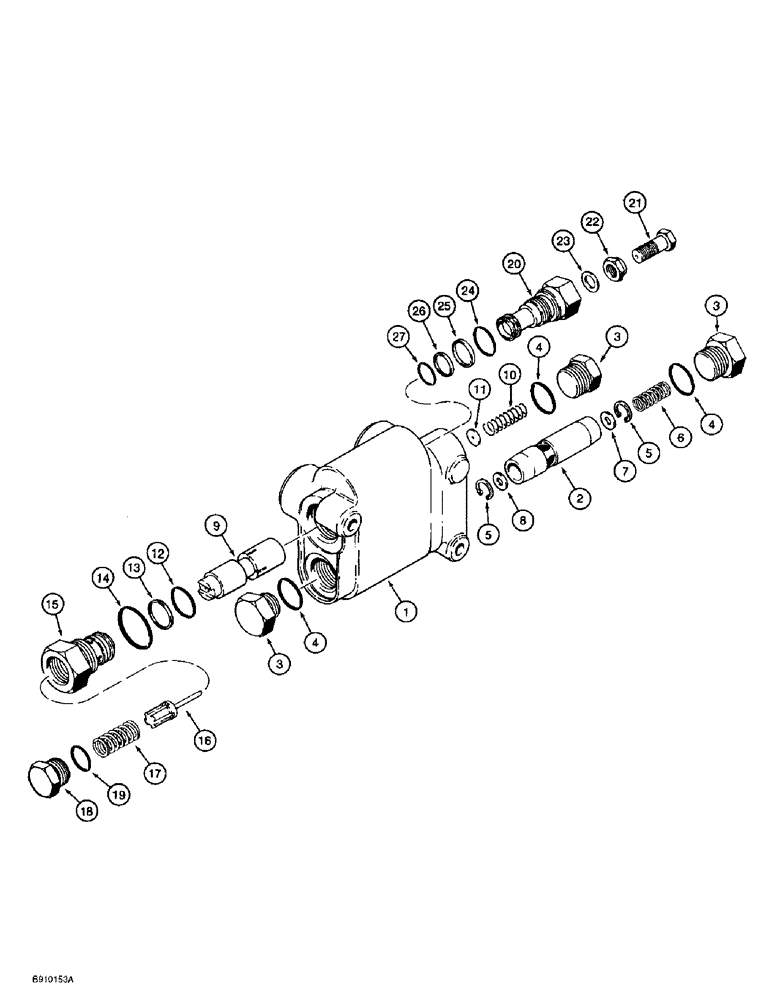

Запчасти Case 1838 (8-12) - SELF-LEVELING VALVE (08) - HYDRAULICS

H673705

VALVE

ASSEMBLY, self leveling, see Figure 8-4 for mounting hardware1-19, P/N H674615

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL flow divider

1шт.

3

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 4

3шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

2шт.

6

H438336

SPRING

flow divider spool

1шт.

7

H438330

LARGE PLATE

PLATE orifice, outer, 0.173 inch diameter

1шт.

8

H438331

LARGE PLATE

PLATE orifice, inner, 0.204 inch diameter

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL metering

1шт.

10

H438335

SPRING

metering spool, plug end

1шт.

11

H438332

LARGE PLATE

PLATE orifice

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

A52424

BACK-UP RING

RING backup

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

H438333

JACK SCREW

CARTRIDGE metering spool

1шт.

16

H438334

VALVE

POPPET cartridge

1шт.

17

H438337

SPRING

metering spool, cartridge end

1шт.

18

214389

PLUG,3/4" - 16 ORB

Includes Ref. 19 Hex Hd, 3/4"-16 ORB

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

H674615

VALVE

ASSEMBLY, relief, Includes Ref. 20-27

1шт.

20

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

21

H438229

ADJUSTMENT SCREW

relief valve

1шт.

22

H438228

NUT

relief valve

1шт.

23

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

teflon

1шт.

24

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

25

H438329

GASKET

RING backup, large

1шт.

26

H438044

GASKET

RING backup, small

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.
