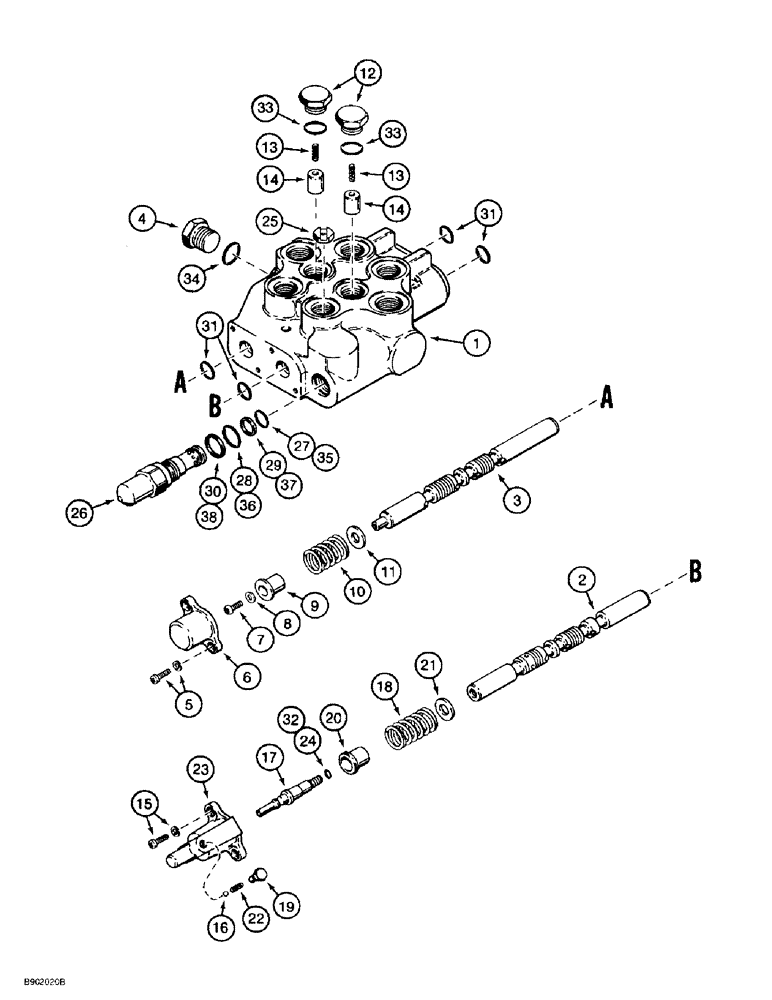

Запчасти Case 1838 (8-10) - LOADER CONTROL VALVE (08) - HYDRAULICS

108222A1

VALVE

ASSEMBLY, loader control, see Figure 8-23 for mounting hardware, Includes Ref. 1-30A, P/N H673569

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL loader lift

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL loader bucket

1шт.

4

132547A1

PLUG

hex, power beyond

1шт.

H674816

KIT

centering spring, Includes Ref. 5-11

1шт.

5

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

SCREW includes lock washer, end cap

2шт.

6

N9528

CAP

bucket spool end

1шт.

7

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

BOLT hex socket, spring seat, bucket spool, No. 10 NF x 1/2 inch

1шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Spring seat, Bucket spool #10

1шт.

9

N9529

SEAT

spring, bucket spool

1шт.

10

N9539

TENSION SPRING

SPRING centering, bucket spool

1шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

H673572

KIT

load check, Includes instruction sheet, Includes Ref. 12-14

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

H673573

KIT

detent float, Includes Ref. 15-24

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW, Includes lock washer, detent float

2шт.

16

NSS

NOT SOLD SEPARAT

BALL detent cap

2шт.

17

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

18

D86558

SPRING

return

1шт.

19

D86560

SCREW

PLUG detent

2шт.

20

D86559

SEAT

spring, lift spool

1шт.

21

D86557

WASHER

lift spool

1шт.

22

N9506

COIL SPRING

SPRING detent

2шт.

23

N9540

COVER

HOUSING detent

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING detent spool

1шт.

25

H436436

PLATE

orifice, 4.6 mm, 0.181 inch

1шт.

26

H673574

VALVE, PRESSURE RELI

VALVE ASSEMBLY, main relief, Includes P/N H674535; Incl 27 - 30C

1шт.

H674535

GASKET KIT

KIT seal, main relief valve, Includes instruction sheet, Includes Ref. 27-30C

1шт.

H673570

SEAL PACKAGE

Seal Kit; Incl 27 - 30

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Relief valve, inner -015, 90 Duro, .551" ID x .070" Thk

1шт.

28

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Relief valve, outer -017, 90 Duro, .676" ID x .070" Thk

1шт.

29

H438044

GASKET

RING backup, relief valve, inner, 9/16 x 1/16 x 11/16

1шт.

30

H438329

GASKET

RING backup, relief valve, outer, 11/16 x 1/16 x 13/16

1шт.

30a

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

Teflon, not shown

1шт.

30b

H438228

NUT

3/8-24UNF; Not Illustrated

1шт.

30c

H438229

ADJUSTMENT SCREW

3/8-24UNF; Not Illustrated

1шт.

H673569

KIT

seal, Includes instructions sheet31-3434, P/N H673570

1шт.

31

H438030

O-RING

valve body

4шт.

32

NSS

NOT SOLD SEPARAT

O-RING detent spool, 15/64 x 1/16 x 3/8

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Load check plug

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Power beyond plug

1шт.

H673570

SEAL PACKAGE

KIT seal, external, main relief valve, Includes instruction sheet35-38

1шт.

35

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Relief valve, inner -015, 90 Duro, .551" ID x .070" Thk

1шт.

36

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Relief valve, outer -017, 90 Duro, .676" ID x .070" Thk

1шт.

37

H438044

GASKET

RING backup, relief valve, inner, 9/16 x 1/16 x 11/16

1шт.

38

H438329

GASKET

RING backup, relief valve, outer, 11/16 x 1/16 x 13/16

1шт.
