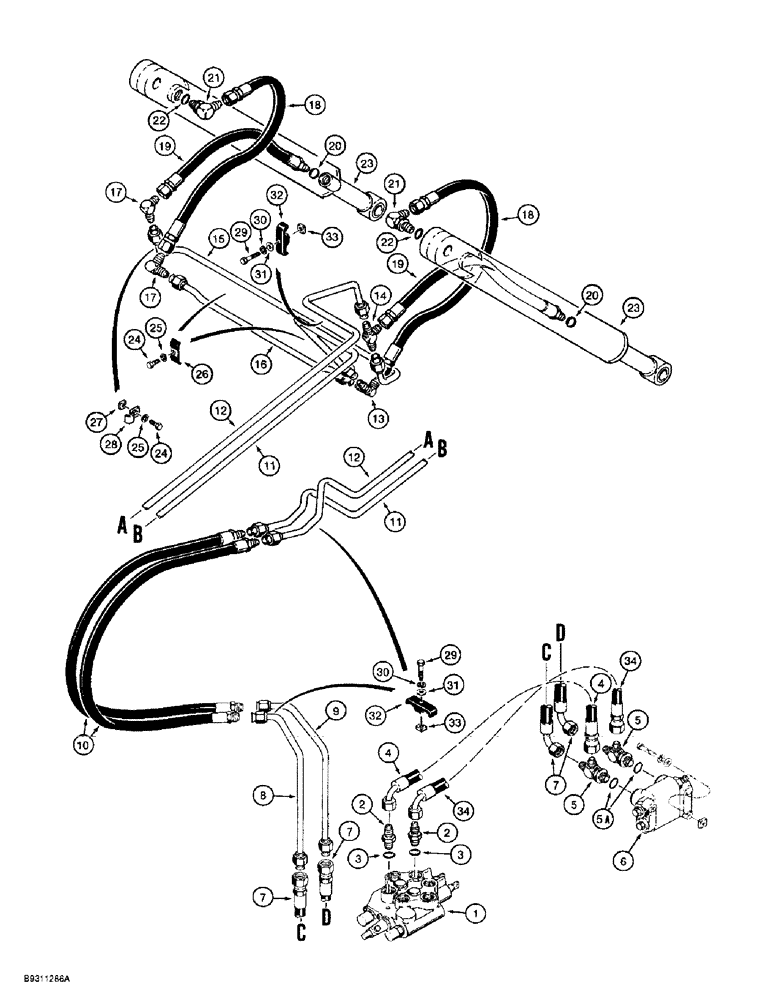

Запчасти Case 1838 (8-08) - LOADER BUCKET HYDRAULIC CIRCUIT, USED ON MODELS WITH SELF-LEVELING (08) - HYDRAULICS

1

108222A1

VALVE

ASSEMBLY, loader control, parts list Figure 8-10

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H437670

HOSE

loader control valve to self leveling valve, 600 mm, 23-5/8 inch long

1шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare branch x flare x adj. O-ring boss, Includes Ref. 5A

2шт.

5a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H673705

VALVE

ASSEMBLY, self leveling, parts list Figure 8-12

1шт.

7

H437671

HOSE

at self leveling valve, 700 mm, 27-1/2 inch long

2шт.

8

H673920

TUBE,0.5" OD

intermediate, to hose at loader arm, to rod end of bucket cylinders

1шт.

9

H673919

TUBE,0.5" OD

intermediate, to hose at loader arm, to closed end of bucket cylinders

1шт.

10

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

at loader arm, 950 mm, 37-13/32 inch long

2шт.

11

H673482

TUBE ASSY.,12.7 mm OD

TUBE intermediate, to crossover tubes to closed end of bucket tilt cylinder

1шт.

12

H673483

TUBE ASSY.,12.7 mm OD x 341, 480 mm L

TUBE intermediate, to crossover tubes to rod end of bucket tilt cylinder

1шт.

13

D124661

ELBOW

MANIFOLD tee, hose and crossover tube to closed end of bucket tilt cylinders

1шт.

14

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

1шт.

15

D139303

TUBE ASSY.

TUBE crossover, to rod end of bucket tilt cylinders

1шт.

16

D139301

TUBE ASSY.

TUBE crossover, to rod end of bucket tilt cylinder

1шт.

17

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

18

D54382

HOSE ASSY.,9.53mm ID x 381mm L, SAE 100R2

HOSE to closed end of bucket tilt cylinder, 381 mm, 15 inch long

2шт.

19

D137692

HOSE ASSY.,9.53mm ID x 430mm L

HOSE to rod end of bucket tilt cylinder, 430 mm, 16-15/16 inch long, Includes Ref. 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes Ref. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

ASSEMBLY, bucket tilt, 65 mm, 2-1/2 ID x 403 mm, 15-7/8 inch stroke, parts list Figure 8-28

2шт.

23

118110A1R

REMAN-HYD CYLINDER

1838 CASE UNI LOADER SKID STEER LOADER, W/OUT SELF-LEVELING, ASSEMBLY

2шт.

23

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

24

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

3шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

26

R17319

CLAMP

crossover tubes

2шт.

27

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

1шт.

28

D140709

CLAMP

crossover tube to rod end of tilt cylinder

1шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

32

D120679

CLAMP,Tube, 1/2"

plastic, tube

2шт.

33

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

34

H437668

HOSE

loader control valve to self-leveling valve, 690 mm, 27-5/32 inch long

1шт.
