Запчасти Case 1838 (6-28) - HYDRAULIC DRIVE MOTOR (06) - POWER TRAIN

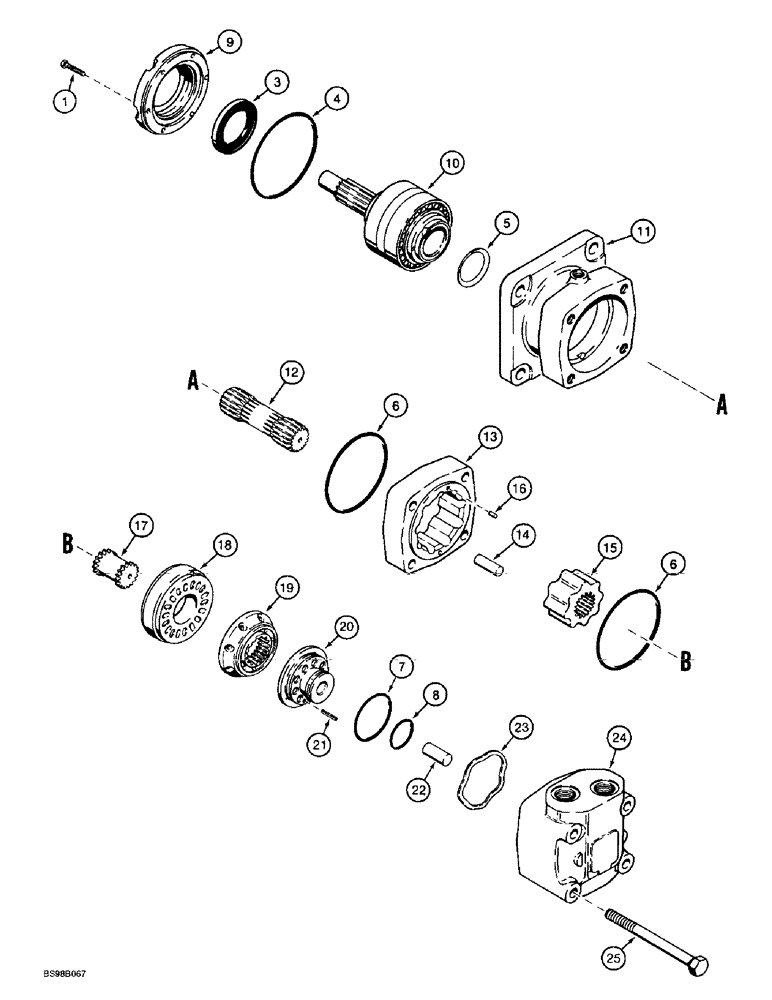

Схема запчастей Case 1838 - (6-28) - HYDRAULIC DRIVE MOTOR (06) - POWER TRAIN
25
7
17
6
16
12
8
9
24
13
22
23
11
20
6
19
4
3
5
10
15
21
1
18
14

Артикул

Название

Примечание

Количество

230459A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY, hydraulic drive, P.I.N. JAF0193088 and after

2шт.

230459A1R

REMAN-HYD MOTOR

1838 P.I.N. JAF0193088 and after

2шт.

230459A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

195268A1

SCREW

BOLT hex, full threads, special, 8 - 1.25 x 25 mm

6шт.

240899A1

SEAL KIT

KIT seal, motor

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING output shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING thrust plate, small

1шт.

9

H436753

FLANGE

CARRIER seal

1шт.

10

195264A1

SHAFT

output, with bearings

1шт.

11

195267A1

BEARING HOUSING

HOUSING bearing

1шт.

12

H436755

GEROTOR

SHAFT rotor drive

1шт.

H436764

GEROTOR

ASSEMBLY, motor, 51 mm, 2 inch thick

1шт.

13

NSS

NOT SOLD SEPARAT

STATOR gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

ROLLER gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

ROTOR gerotor

1шт.

16

E37942

GUIDE PIN

PIN guide

1шт.

17

H436757

SHAFT

short

1шт.

18

H436759

CHAMBER

MANIFOLD short shaft

1шт.

19

H436760

VALVE

disc

1шт.

20

240896A1

LARGE PLATE

PLATE thrust

1шт.

21

738-5514

LOCK PIN,M5 x 14, Slotted

PIN roll, 5 x 14 mm

1шт.

22

H436761

SPACER

port end cover

1шт.

23

240898A1

SPRING WASHER

spring

1шт.

24

240895A1

HOUSING

COVER port end

1шт.

25

175401A1

SCREW,Hex, M14 x 2 x 150mm, Cl 10.9

BOLT hex, 14 - 2.0 x 150 mm

4шт.

Выбрано товаров: 29
