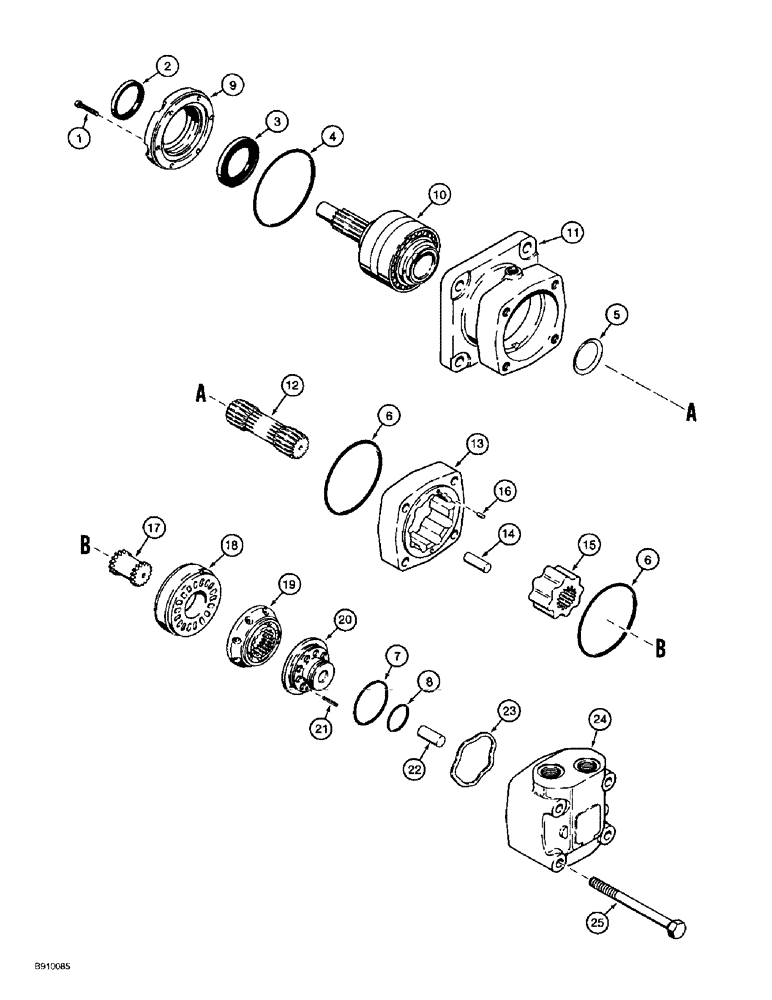

Запчасти Case 1838 (6-26) - HYDRAULIC DRIVE MOTOR (06) - POWER TRAIN

H673449

MOTOR, HYDRAULIC

MOTOR ASSEMBLY, hydraulic drive, prior to P.I.N. JAF0193088, Includes Ref. 1-26

2шт.

231815A1R

REMAN-HYD MOTOR

1838 prior to P.I.N. JAF0193088, Reman for New P/N H673449

2шт.

231815A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

6шт.

H673765

SEAL PACKAGE

KIT seal, motor, Includes Ref. 2-8

1шт.

2

NSS

NOT SOLD SEPARAT

WIPER shaft

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING output shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING thrust plate, small

1шт.

9

H436753

FLANGE

CARRIER seal

1шт.

10

H436752

SHAFT

output, with bearings

1шт.

11

H436754

BEARING HOUSING

HOUSING bearing

1шт.

12

H436755

GEROTOR

SHAFT rotor drive

1шт.

H436764

GEROTOR

ASSEMBLY, motor, 51 mm, 2 inch thick, Includes Ref. 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

STATOR gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

ROLLER gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

ROTOR gerotor

1шт.

16

E37942

GUIDE PIN

PIN guide

1шт.

17

H436757

SHAFT

short

1шт.

18

H436759

CHAMBER

MANIFOLD short shaft

1шт.

19

H436760

VALVE

disc

1шт.

20

H436763

LARGE PLATE

PLATE thrust

1шт.

21

837-5028

DOWEL,M5 x 28

PIN dowel, hardened, 5 x 28 mm

1шт.

22

H436761

SPACER

port end cover

1шт.

23

H436762

SPACER

WASHER spring wave

1шт.

24

H436758

COVER

port end

1шт.

25

814-14150

BOLT,Hex, M14 x 2 x 150mm, Cl 8.8

4шт.

26

838-1324

LOCK PIN,M3 x 24, Slotted

PIN roll, 3 x 24 mm, not shown

1шт.
