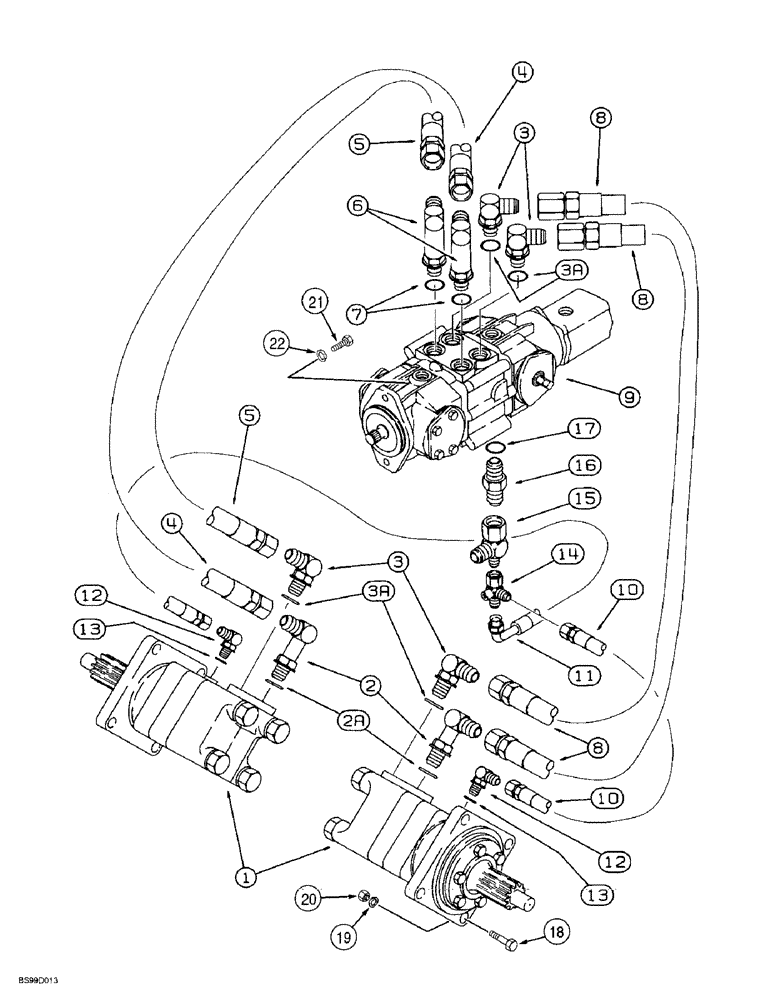

Запчасти Case 1838 (6-24) - HYDROSTATIC DIRVE HYDRAULIC CIRCUIT TANDEM PUMP TO DRIVE MOTORS (06) - POWER TRAIN

1

REF

INSTRUCTION

MOTOR ASSEMBLY, hydraulic drive, see Figures 6-26 and 6-28 for correct assembly and parts list

2шт.

2

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90 degree, long, 1-1/16-12 inch flare x O-ring boss, Includes Ref. 2

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 3

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

133531A1

HOSE

left hand drive motor to tandem pump, long, 630 mm, 24-13/16 inch long

1шт.

5

132993A1

HOSE

left hand drive motor to tandem pump, short, 540 mm, 25-3/16 inch long

1шт.

6

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90 degree, long, 1-1/16-12 inch flare x O-ring boss, Includes Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

132993A1

HOSE

right hand drive motor to tandem pump, 540 mm, 25-3/16 inch long

2шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY, tandem and gear, see Figures 6-13 and 6-19B for correct assembly and parts list

1шт.

10

132994A1

HOSE

right hand drive motor to tee, 560 mm, 22 inch long

1шт.

11

132995A1

HOSE

left hand drive motor to tee, 540 mm, 21-1/4 inch long

1шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, 3/4-16 flare x 9/16-18 inch adj. O-ring boss13

2шт.

14

H435873

TEE

MANIFOLD adapter, drive motor drain, Serial Range: hose-tee

1шт.

15

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1-1/16-12 flare branch x swivel x 3/4-16 inch flare

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

428-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

hex, 5/8 NF x 2 inch, grade 8

8шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20

429-1110

NUT,5/8"-18, G8

8шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
