Запчасти Case 1838 (6-22) - AXLES AND DRIVE CHAINS (06) - POWER TRAIN

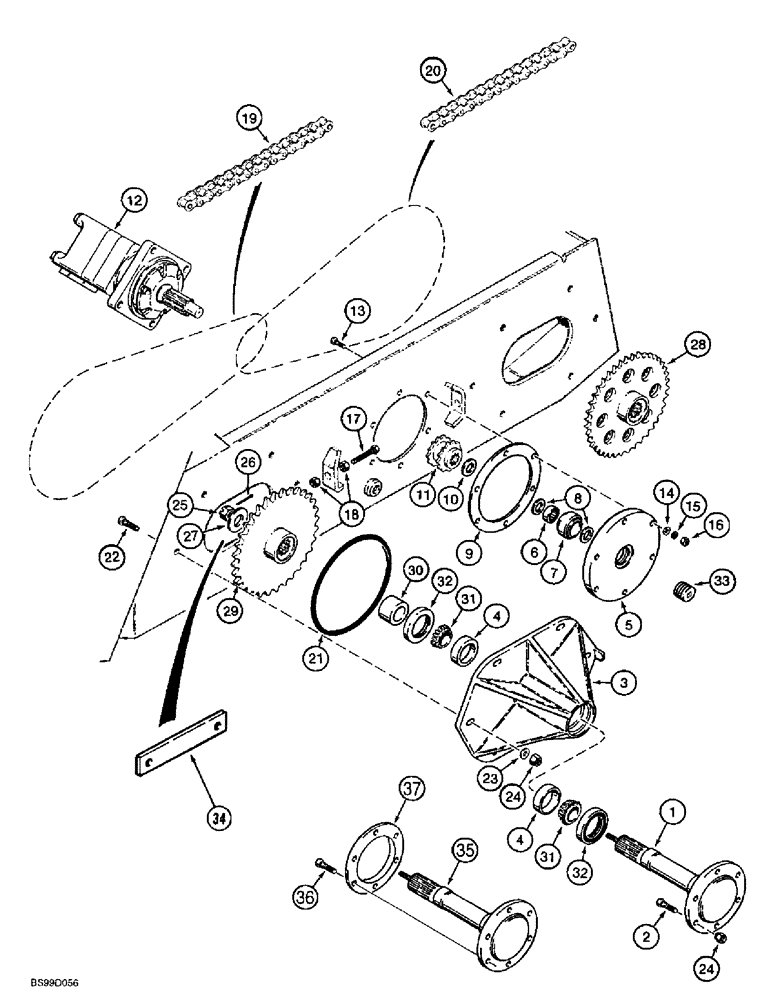

Схема запчастей Case 1838 - (6-22) - AXLES AND DRIVE CHAINS (06) - POWER TRAIN
3
5
30
33
4
14
27
16
32
18
24
20
25
6
1
29
31
21
34
15
28
36
9
19
4
12
11
17
7
22
10
24
8
2
13
32
31
23
26
35
37

Артикул

Название

Примечание

Количество

103825A1

AXLE

ASSEMBLY, drive wheel, prior to P.I.N. JAF0150990, Includes Ref. 1-2

4шт.

1

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

2

H439302

WHEEL BOLT

BOLT wheel, special, 9/16 inch NF

6шт.

3

199283A1

HUB

axle, Replaces: H435001 and H438366 hub

4шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP tapered roller bearing, 2-57/64 inch OD

8шт.

5

H439300

BEARING HOUSING

HOUSING bearing

2шт.

6

D80554

NEEDLE BEARING CAGE

BEARING needle, hydraulic motor shaft

2шт.

7

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING self aligning

2шт.

8

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

RETAINER bearing

4шт.

9

D136535

GASKET,1.57mm Thk

bearing housing

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

thrust, drive sprocket

2шт.

11

H436803

DRIVE SPROCKET

SPROCKET drive, 10 teeth

2шт.

12

REF

INSTRUCTION

MOTOR ASSEMBLY, hydraulic drive, see Figures 6-26 and 6-28 for correct assembly and parts list

2шт.

13

H435895

BOLT

pressed in type, special, bearing housing to chassis, if used

12шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32", Replaces 495-11041

12шт.

15

492-11038

LOCK WASHER,3/8"

used with Ref. 13 bolt 3/8"

12шт.

16

425-106

NUT,3/8"-16, Cl 5

Used with Ref. 13 bolt 3/8"-16, G5

12шт.

16a

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

12шт.

17

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

Hex, 1/2"-13 x 2 3/4", G5, Full Thd

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

H435116

CHAIN,#80H, 62 Links x 25.4mm = 1574.8mm

CHAIN drive, 62 pitches, endless, special, rear

2шт.

20

H435117

CHAIN (CE)

CHAIN drive, 56 pitches, endless, special, front

2шт.

21

238-5445

O-RING,0.275" Thk x 7.97" ID, -445, Cl 5, 75 Duro

4шт.

22

H439302

WHEEL BOLT

BOLT wheel, special, hub to chassis, pressed in type, if used, 9/16 inch NF

24шт.

23

H439308

WASHER,16mm ID x 33.3mm OD x 4.7mm Thk

flat, hardened, special

24шт.

24

G49041

WHEEL NUT

wheel, special, 9/16 inch NF

48шт.

25

425-1316

NUT,1"-14, G5

NUT hex, slotted, 1 inch NF

4шт.

26

32-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

4шт.

27

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

flat, special

1шт.

28

H435243

DRIVE SPROCKET

SPROCKET axle, 33 teeth, front

2шт.

29

H435258

DRIVE SPROCKET

SPROCKET axle, 33 teeth, rear

2шт.

30

H438367

SPACER,42.97mm ID x 57.23mm OD x 30mm L

axle, 43 x 57 x 30 mm long

4шт.

31

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE tapered roller bearing, 1-25/32 inch ID

8шт.

32

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

33

591780

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG hex socket, 1 inch PT

2шт.

34

H438670

BAR

PLATE reinforcement, axle hub lower mounting bolt, if used

4шт.

199281A1

HUB

AXLE ASSEMBLY, drive wheel, with seal guard, P.I.N. JAF0150990 and after, Includes Ref. 35-37

4шт.

35

NSS

NOT SOLD SEPARAT

AXLE

1шт.

36

H439302

WHEEL BOLT

BOLT wheel, special, 9/16 inch NF

6шт.

37

198783A1

GUARD

seal

1шт.
