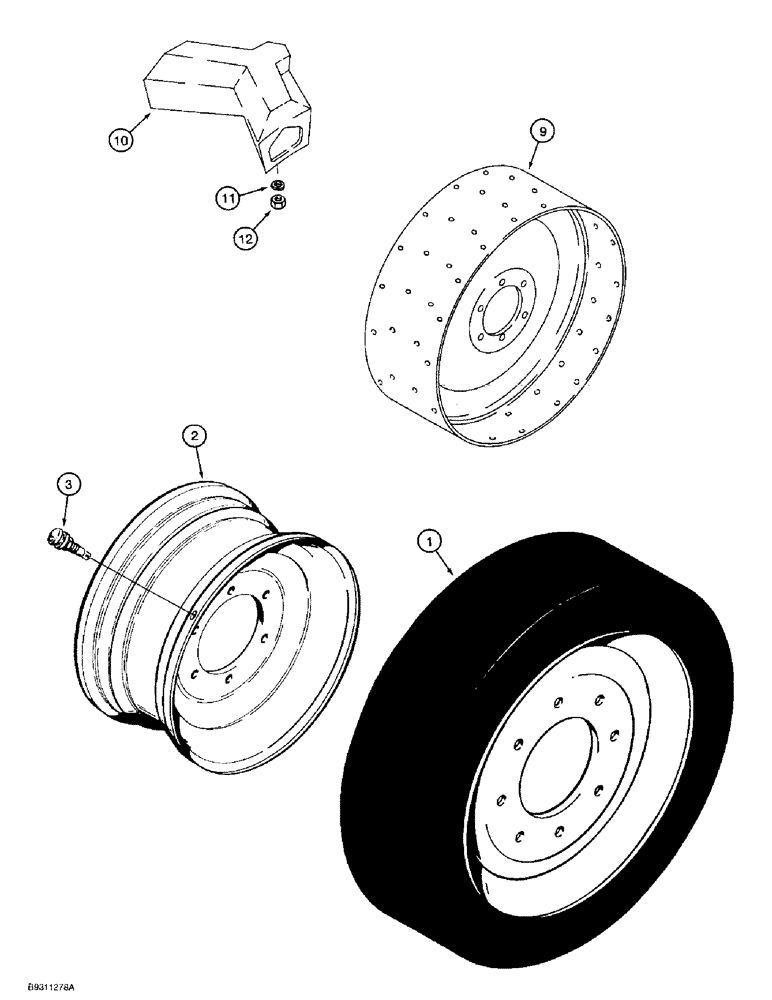

Запчасти Case 1838 (6-20) - TIRES AND WHEELS (06) - POWER TRAIN

1

D131264

WHEEL with solid rubber tire, machinery item, order from Machinery Price List, if used

4шт.

2

H438705

WHEEL

rim, full plate center, if used, 7 x 15 inch tire

4шт.

2

H438566

RIM

WHEEL rim, full plate center, if used, 10 x 16.5 inch tire

4шт.

2

246885A1

RIM

WHEEL rim, full plate center, if used, 9.75 x 16.5 inch tire

4шт.

2

258685A1

WHEEL

rim, special offset, if used

4шт.

3

T57461

VALVE STEM

tire inflation, used with Ref. 2 wheel, if used

4шт.

4

REF

INSTRUCTION

TUBE used with H438705, wheels, Ref. 2, not shown, purchase from local source, 7 x 15 inch

1шт.

5

REF

INSTRUCTION

TIRE nylon, not shown, purchase from local source, 7 x 15 inch

4шт.

6

REF

INSTRUCTION

TIRE steel cap, not shown, purchase from local source, 7 x 15 inch

4шт.

7

REF

INSTRUCTION

TIRE flotation, not shown, purchase from local source, 10 x 16.5 inch

4шт.

346282A1

TYRE/TIRE

WHEEL SET ASSEMBLY, with segments, 10 x 16.5 inch, Replaces: H675135 and 253724A1wheel set, Includes Wheel Assembly

1шт.

NSS

NOT SOLD SEPARAT

WHEEL ASEEMBLY, right hand, with segments, 10 x 16.5 inch, Includes Ref. 9-12

2шт.

9

137234A1

RIM

right-hand, right hand, shown, 10 x 16.5 inch, Replaces: 138684A1 rim

1шт.

10

346263A1

TYRE/TIRE

SEGMENT black rubber, Replaces: 138686A1 segment

18шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY, left hand, 10 x 16.5, Includes Ref. 9-12

2шт.

9

138685A1

RIM

left-hand, left hand, not shown, 10 x 16.5 inch

1шт.

10

346263A1

TYRE/TIRE

SEGMENT black rubber, Replaces: 138686A1 and 253735A1 segment

18шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

13

346587A1

TYRE/TIRE

WHEEL airboss, 7.5 x 15 inch, not shown

4шт.
