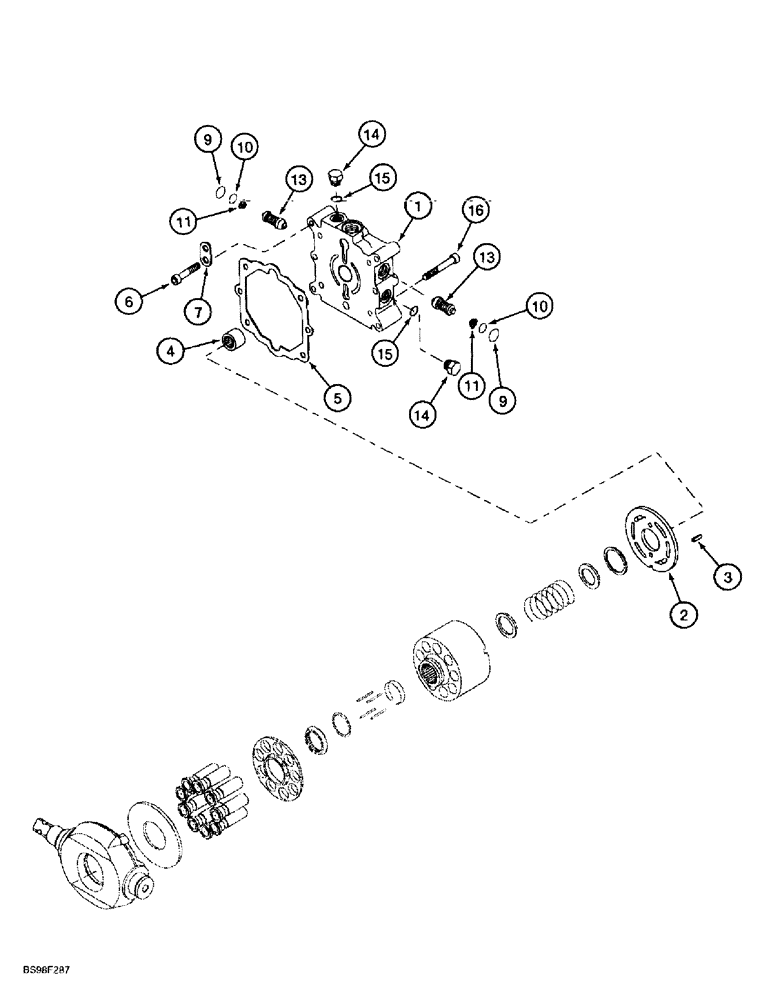

Запчасти Case 1838 (6-19G) - TANDEM PUMP ASSEMBLY REAR DIRVE PUMP END CAP & RELIEF VALVES (06) - POWER TRAIN

239927A1

PUMP

ASSEMBLY, tandem with gear pump, Includes parts on Figures 6-19A - 6-19G, Includes Ref. 1-16, P/N 251673A2

1шт.

1

241592A1

COVER

CAP end, tandem pump, rear

1шт.

2

132370A1

LARGE PLATE

PLATE valve

1шт.

3

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

4

132391A1

BEARING, NEEDLE

BEARING needle

1шт.

5

124826A1

GASKET

end cap

1шт.

6

132357A1

HEX SOC SCREW

SCREW hex socket head

4шт.

7

100703A1

PLATE, SPACER

BRACKET lifting

1шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

11

N14435

SPRING

relief valve

2шт.

13

132381A2

VALVE

relief

2шт.

14

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 15 Hex Hd, 9/16"-18 ORB

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

106564A1

SCREW

hex socket head

4шт.

251673A2

SEAL KIT

KIT seal repair; Includes (19) Seals, (2) End Cap Gaskets; Replaces 251673A1

1шт.
