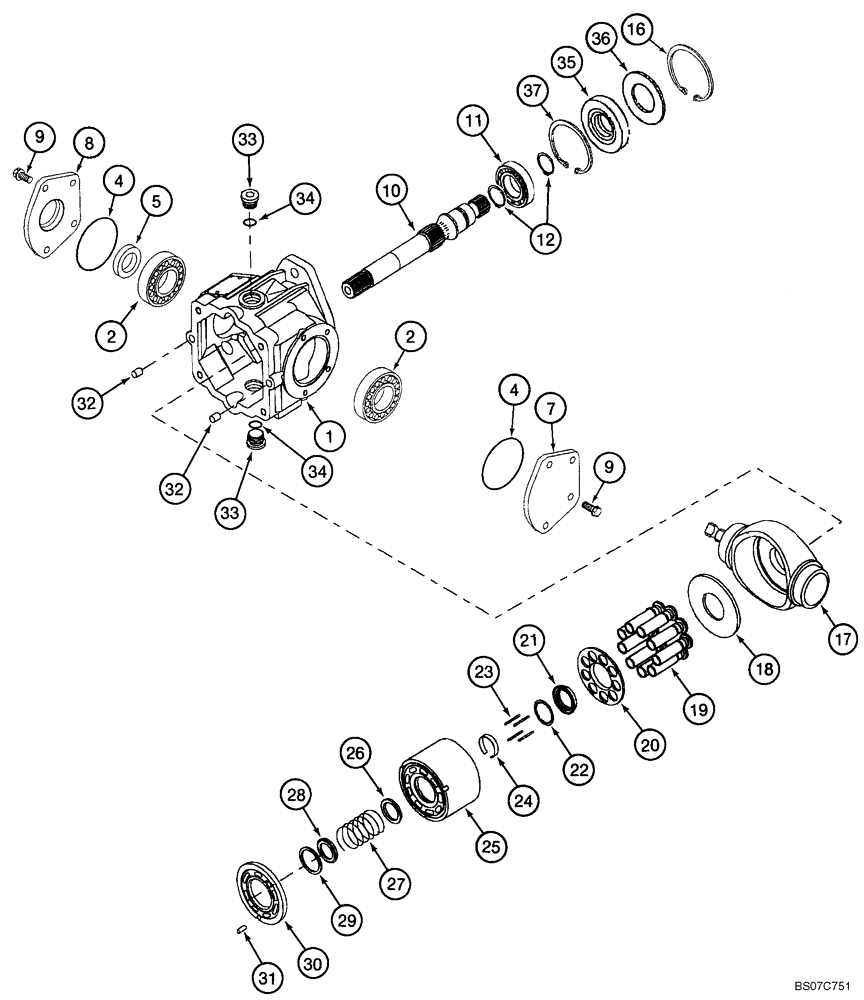

Запчасти Case 1838 (6-19A) - TANDEM PUMP ASSEMBLY FRONT DRIVE PUMP HOUSING INPUT SHAFT & PISTON BLOCK (06) - POWER TRAIN

239927A1

PUMP

ASSEMBLY, tandem with gear pump, Includes parts on Figures 6-19A - 6-19G, Includes Ref. 1-37 and P/N 251673A2

1шт.

1

241587A1

HOUSING

pump, input shaft end

1шт.

2

241590A1

BEARING ASSY

BEARING tapered roller

2шт.

4

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

2шт.

5

H438288

SEAL

lip

1шт.

7

H438310

COVER

housing

1шт.

8

H438311

COVER

CARRIER housing

1шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

8шт.

10

241608A1

SHAFT

pump

1шт.

11

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING ball

1шт.

12

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

16

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, 2.812", Int, #281

1шт.

17

241593A1

PIVOT PLATE

PLATE swash

1шт.

18

100700A1

PLATE

thrust

1шт.

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY, cylinder, Includes Ref. 19-29

1шт.

19

234386A2

PISTON

pump; Replaces 234386A1

9шт.

20

176376A1

COLLAR

RETAINER piston

1шт.

21

176375A1

GUIDE RING

GUIDE retainer

1шт.

22

100705A1

THRUST WASHER

thrust

1шт.

23

117381A1

SPLIT PIN/SAFETY PIN

PIN retainer

4шт.

24

117382A1

SPLIT PIN/SAFETY PIN

RETAINER pin

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

26

176372A1

WASHER

thrust

1шт.

27

176373A1

SPRING

cylinder block

1шт.

28

115950A1

WASHER

WASHER spring

1шт.

29

102-22162

SNAP RING,43.20mm ID, Int, Spiral

RING internal spiral retaining, No. 162

1шт.

30

132362A1

LARGE PLATE

PLATE valve

1шт.

31

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

32

F23124

AXLE PIN

PIN locating

2шт.

33

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 34 Hex Soc, 1 1/16"-12 ORB

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

N14103

SEAL

carrier

1шт.

36

241589A1

SEALING WASHER,38.1mm ID x 71.75mm OD x 2.16mm Thk

seal support

1шт.

37

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, 2.812", Int, #281

1шт.

251673A2

SEAL KIT

KIT seal repair, overhaul; Includes (19) Seals, (2) End Cap Gaskets; Replaces 251673A1

1шт.
