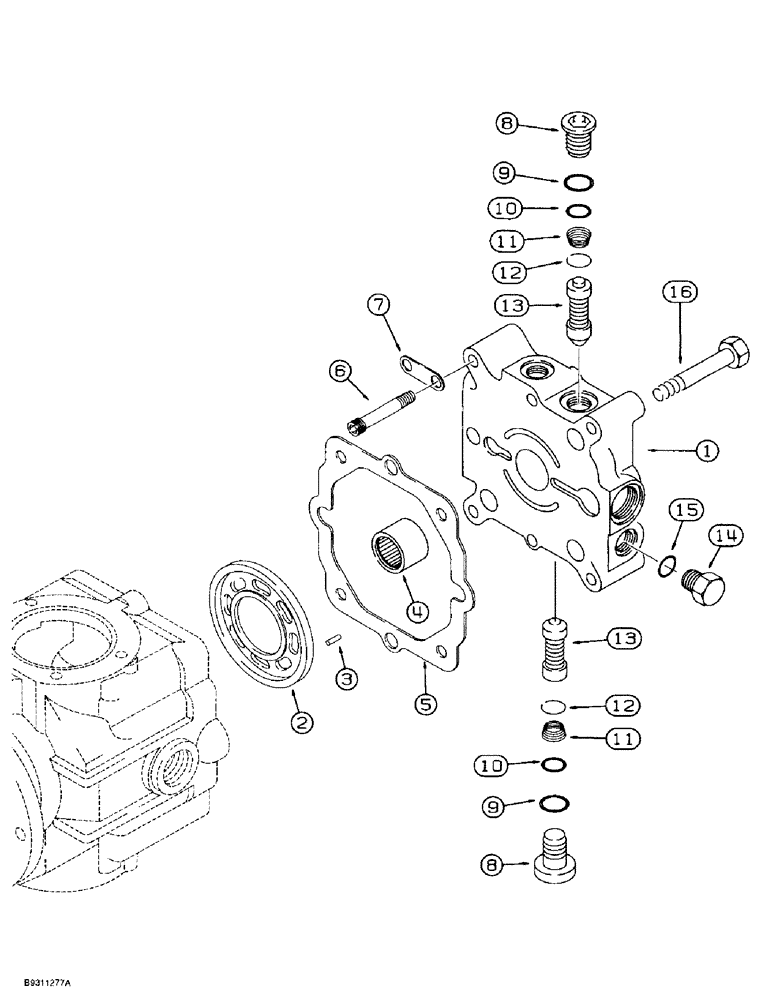

Запчасти Case 1838 (6-18) - TANDEM PUMP ASSEMBLY FRONT DRIVE PUMP END CAP & RELIEF VALVES (06) - POWER TRAIN

124358A1

PUMP

ASSEMBLY, tandem and gear, Includes parts on Figures 6-12 - 6-18, no longer available, for service order 239927A1 pump assembly, parts list Figures 6-19A - 6-19G

1шт.

179245A1

PUMP

ASSEMBLY, tandem and gear, Includes parts on Figures 6-12 - 6-18, no longer available, for service order 239927A1 pump assembly, parts list Figures 6-19A - 6-19G, Includes Ref. 1-16

1шт.

1

132379A1

CAP

end, tandem pump, rear

1шт.

2

132370A1

LARGE PLATE

PLATE valve

1шт.

3

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

4

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING drive shaft

1шт.

5

124826A1

GASKET

end cap

1шт.

6

132357A1

HEX SOC SCREW

SCREW hex socket head, special

4шт.

7

100703A1

PLATE, SPACER

BRACKET lifting

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG relief valve

2шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

11

N14435

SPRING

relief valve

2шт.

12

NSS

NOT SOLD SEPARAT

RING retaining, relief valve

2шт.

13

132381A1

VALVE

relief, 280 bar/4060 psi

2шт.

14

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 15 Hex Hd, 9/16"-18 ORB

2шт.

16

106564A1

SCREW

hex socket head

4шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
