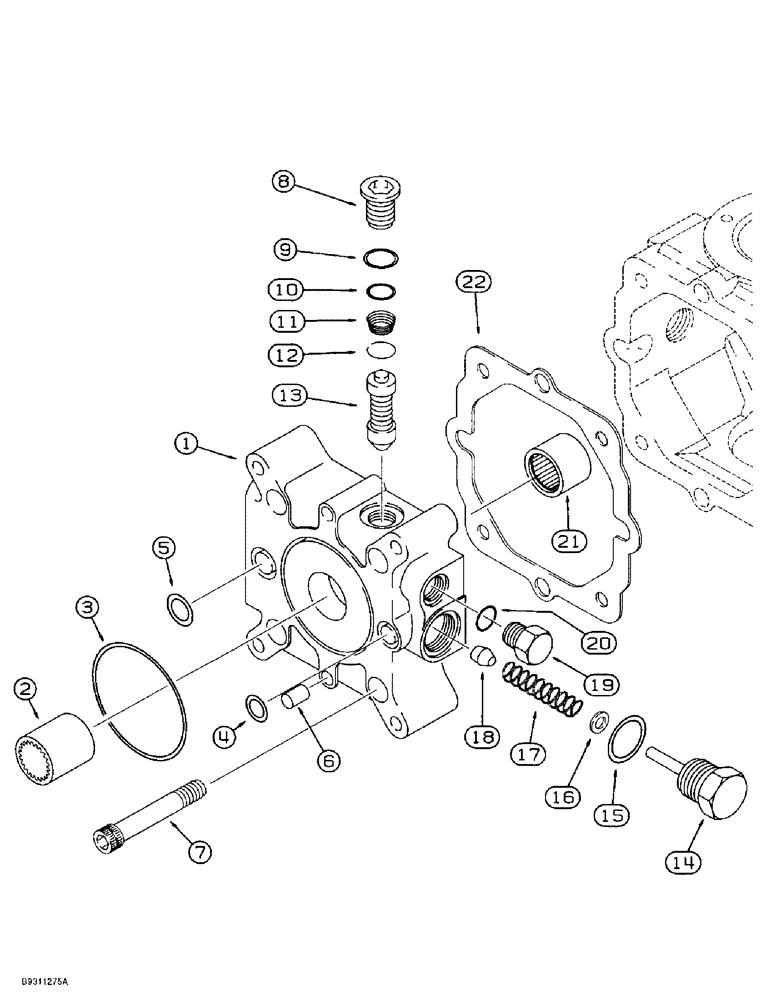

Запчасти Case 1838 (6-14) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP END CAP & RELIEF VALVES (06) - POWER TRAIN

124358A1

PUMP

ASSEMBLY, tandem and gear, also includes parts on Figures 6-12 - 6-18, no longer available, for service order 239927A1 pump assembly, parts list Figures 6-19A - 6-19G

1шт.

179245A1

PUMP

ASSEMBLY, tandem and gear, also includes parts on Figures 6-12 - 6-18, no longer available, for service order 239927A1 pump assembly, parts list Figures 6-19A - 6-19G, Includes Ref. 1-22

1шт.

1

132380A1

CAP

end, front pump, Replaces: 124839A1 cap

1шт.

2

132375A1

SPLINED COUPLING

COUPLING tandem pump

1шт.

3

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

F23124

AXLE PIN

PIN locating

2шт.

7

106564A1

SCREW

hex socket head, special

4шт.

8

NSS

NOT SOLD SEPARAT

PLUG relief valve

2шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

11

N14435

SPRING

relief valve

2шт.

12

NSS

NOT SOLD SEPARAT

RING retaining, relief valve

2шт.

13

132381A1

VALVE

relief, 280 bar/4060 psi

2шт.

14

H438295

PLUG

charge relief

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

132377A1

BLOCK

KIT shim

1шт.

17

124828A1

SPRING

helical compression, plug

1шт.

18

H438300

POPPET

POPPET plug, charge relief

1шт.

19

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 20 Hex Hd, 9/16"-18 ORB

1шт.

21

132391A1

BEARING, NEEDLE

BEARING needle

1шт.

22

124826A1

GASKET

end cap

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
