(6-12) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP HOUSING INPUT SHAFT & PISTON BLOCK

Запчасти Case 1838 (6-12) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP HOUSING INPUT SHAFT & PISTON BLOCK (06) - POWER TRAIN

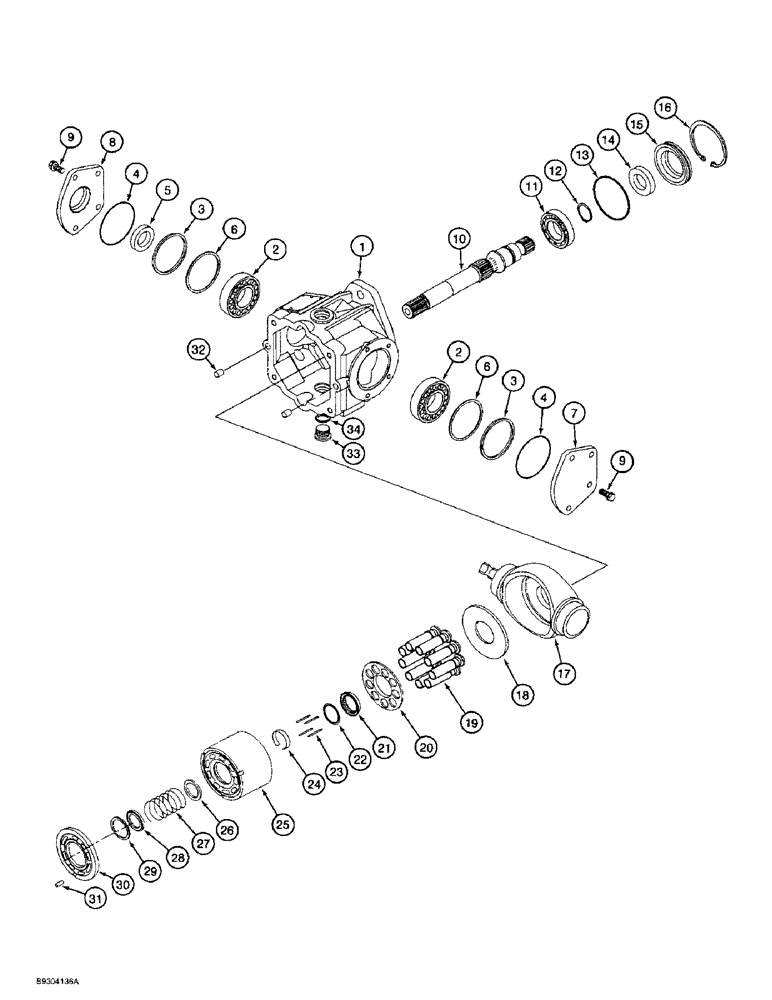

Схема запчастей Case 1838 - (6-12) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP HOUSING INPUT SHAFT & PISTON BLOCK (06) - POWER TRAIN
1
25
23
17
21
19
22
15
32
9
34
13
12
31
2
14
29
6
28
16
2
9
5
4
6
24
10
27
7
8
3
11
30
20
3
4
33
26
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

124358A1

PUMP

ASSEMBLY, tandem and gear, also includes parts on Figures 6-12 - 6-18, no longer available, for service order 239927A1 pump assembly, parts list Figures 6-19A - 6-19G

1шт.

179245A1

PUMP

ASSEMBLY, tandem and gear, also includes parts on Figures 6-12 - 6-18, no longer available, for service order 239927A1 pump assembly, parts list Figures 6-19A - 6-19G, Includes Ref. 1-33

1шт.

1

117378A1

HOUSING

pump, input shaft end

1шт.

2

H438304

BEARING

tapered roller

2шт.

3

H438309

SPACER

bearing

2шт.

4

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

Housing to cover Rect, 2.612" ID x 2.8" OD, Cl 5

2шт.

5

H438288

SEAL

lip

1шт.

6

132383A1

BLOCK

KIT shim, trunnion

2шт.

7

H438310

COVER

housing

1шт.

8

H438311

COVER

CARRIER housing

1шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

10

178296A1

SHAFT

pump

1шт.

11

700510R91

BALL BEARING

BEARING ball

1шт.

12

100-16118

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

13

238-5146

O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro

1шт.

14

100699A1

SEAL

lip

1шт.

15

100704A1

CARRIER FLANGE SEAL

CARRIER seal

1шт.

16

103-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.

17

124831A1

PLATE

swash, pistons

1шт.

18

100700A1

PLATE

thrust

1шт.

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY, cylinder, Includes Ref. 19-29

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON pump

9шт.

20

176376A1

COLLAR

RETAINER piston

1шт.

21

176375A1

GUIDE RING

GUIDE retainer

1шт.

22

100705A1

THRUST WASHER

thrust

1шт.

23

117381A1

SPLIT PIN/SAFETY PIN

PIN retainer

4шт.

24

117382A1

SPLIT PIN/SAFETY PIN

RETAINER pin

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

26

176372A1

WASHER

thrust

1шт.

27

176373A1

SPRING

cylinder block

1шт.

28

115950A1

WASHER

WASHER spring

1шт.

29

102-22162

SNAP RING,43.20mm ID, Int, Spiral

RING internal spiral retaining, No. 162

1шт.

30

132362A1

LARGE PLATE

PLATE valve

1шт.

31

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

32

F23124

AXLE PIN

PIN locating, valve block

2шт.

33

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 34 Hex Soc, 1 1/16"-12 ORB

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
