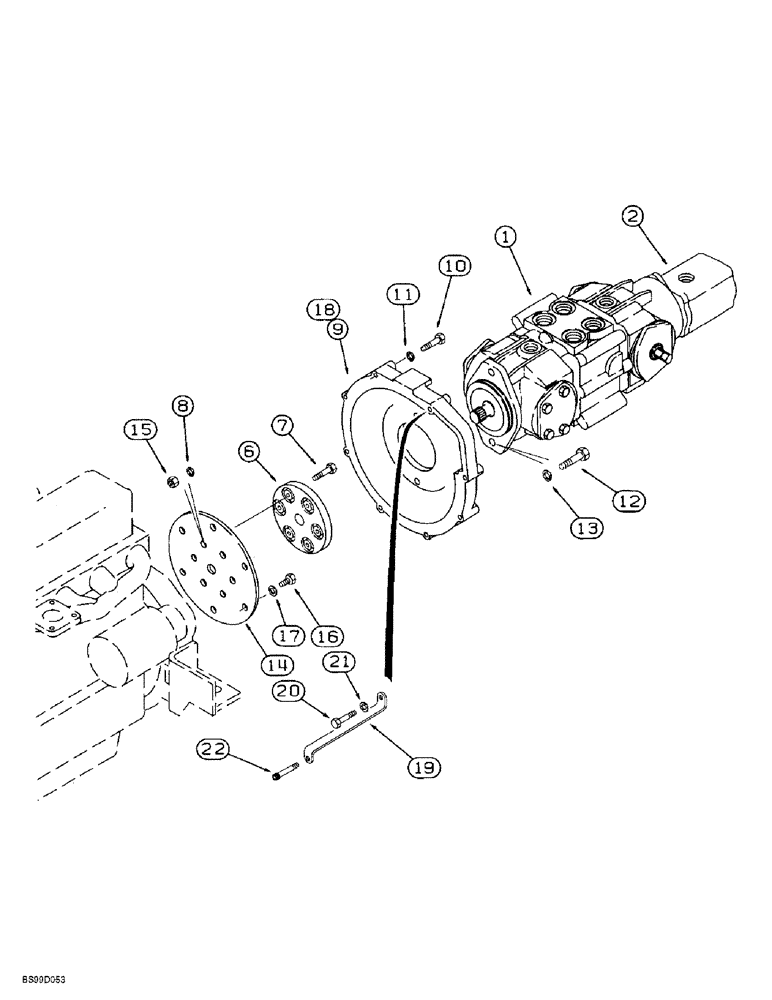

Запчасти Case 1838 (6-10) - TANDEM PUMP MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY, tandem and gear, see Figures 6-12 or 6-19B for correct assembly and parts list, Includes Ref. 2-5

1шт.

2

134535A1

PUMP

ASSEMBLY, gear; Incl 3 - 5

1шт.

3

492-11038

LOCK WASHER,3/8"

not shown 3/8"

4шт.

4

137667A1

BOLT,Hex, 3/8" x 117mm, Gr 5

hex, not shown

4шт.

5

137668A1

SEAL KIT

KIT seal, not shown

1шт.

6

110548A1

FLANGE

PLATE drive

1шт.

7

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

8

892-11010

LOCK WASHER,M10

6шт.

9

126137A1

HOUSING

pump mounting, no longer available, for service order 176396A1 housing

1шт.

10

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

hex, 10 - 1.25 x 60 mm

6-8шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

6-8шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads, class 10.9, 12 - 1.75 x 35 mm

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

127344A1

PLATE

adapter, Serial Range: flywheel-coupler

1шт.

15

825-11410

NUT,M10 x 1.25, Cl 8

6шт.

16

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

892-11010

LOCK WASHER,M10

6шт.

18

176396A1

HOUSING

pump mounting

1шт.

19

225281A1

SUPPORT

BRACKET support, used with 176396A1 housing

2шт.

20

514-728

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

hex, 10 - 1.25 x 65 mm

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.

22

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

SCREW - hex socket, 10 - 1.5 x 70 mm

2шт.
