(6-08) - TANDEM PUMP LINKAGE

Запчасти Case 1838 (6-08) - TANDEM PUMP LINKAGE (06) - POWER TRAIN

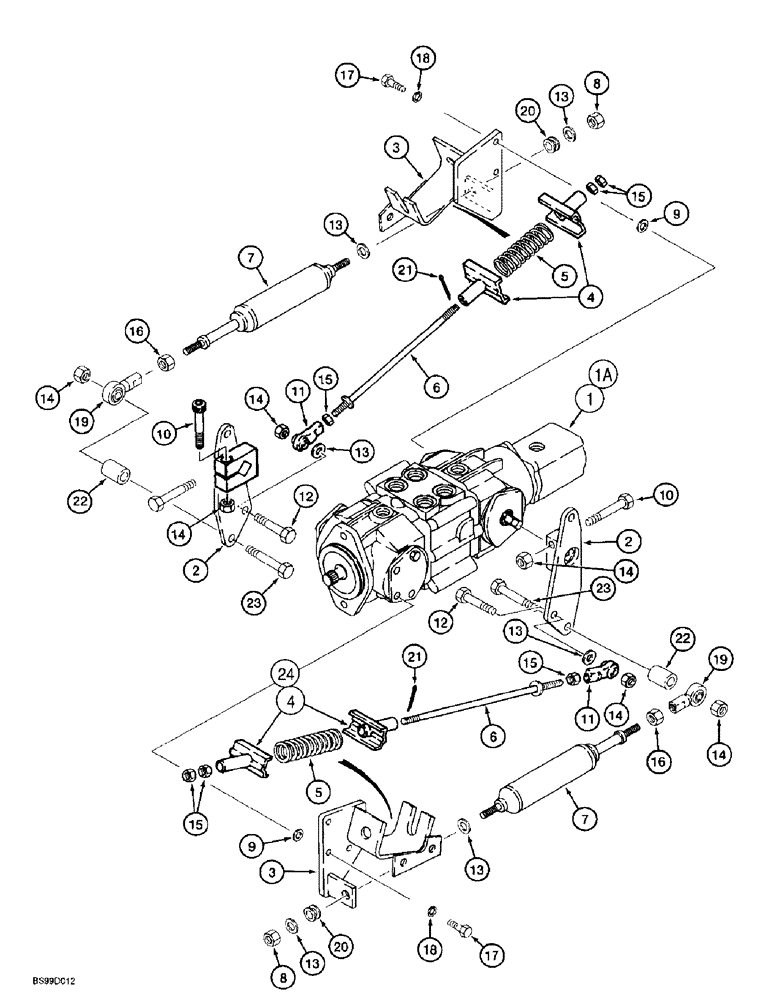

Схема запчастей Case 1838 - (6-08) - TANDEM PUMP LINKAGE (06) - POWER TRAIN
2
1
14
13
17
13
8
23
14
18
2
13
20
22
24
16
13
6
14
5
13
14
15
3
19
4
7
9
17
6
1a
11
19
14
16
22
15
10
10
11
12
9
5
13
3
21
12
14
4
20
15
15
21
7
23
18
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

124358A1

PUMP

ASSEMBLY, tandem and gear, parts list Figures 6-12 through 6-18, no longer available, for service order 239927A1 pump assembly

1шт.

1

179245A1

PUMP

ASSEMBLY, tandem and gear, parts list Figures 6-12 through 6-18, no longer available, for service, order 239927A1 pump assembly

1шт.

1a

239927A1

PUMP

ASSEMBLY, tandem with gear pump, parts list Figures 6-19A through 6-19G

1шт.

2

128093A1

BRACKET

control pivot

2шт.

3

128081A1

SUPPORT

BRACKET centering spring

2шт.

4

186025A1

CUP

RETAINER centering spring, Replaces: H668194 retainer

4шт.

5

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

rod

2шт.

6

130021A1

ROD

centering spring

2шт.

7

D66538

SHOCK ABSORBER

ABSORBER shock

2шт.

8

231-2446

NUT,3/8"-24, GB

NUT hex, self locking, 3/8 inch NF

6шт.

9

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch

1шт.

10

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

BOLT hex socket, 3/8 NC x 2-1/4 inch

2шт.

11

S108030

JOINT

ball, female, 3/8 inch NF

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

6шт.

15

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

6шт.

16

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

6шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, Full Thd, 8 - 1.25 x 30 mm

6шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

19

D59922

BALL JOINT

JOINT ball, 3/8 inch NF

2шт.

20

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, 5/8 inch groove diameter

2шт.

21

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

22

184114A1

SPACER

crank, Replaces: H439161 spacer

2шт.

23

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Replaces 413-632 Hex, 3/8"-16 x 1 3/4", G5

2шт.

24

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

4шт.
