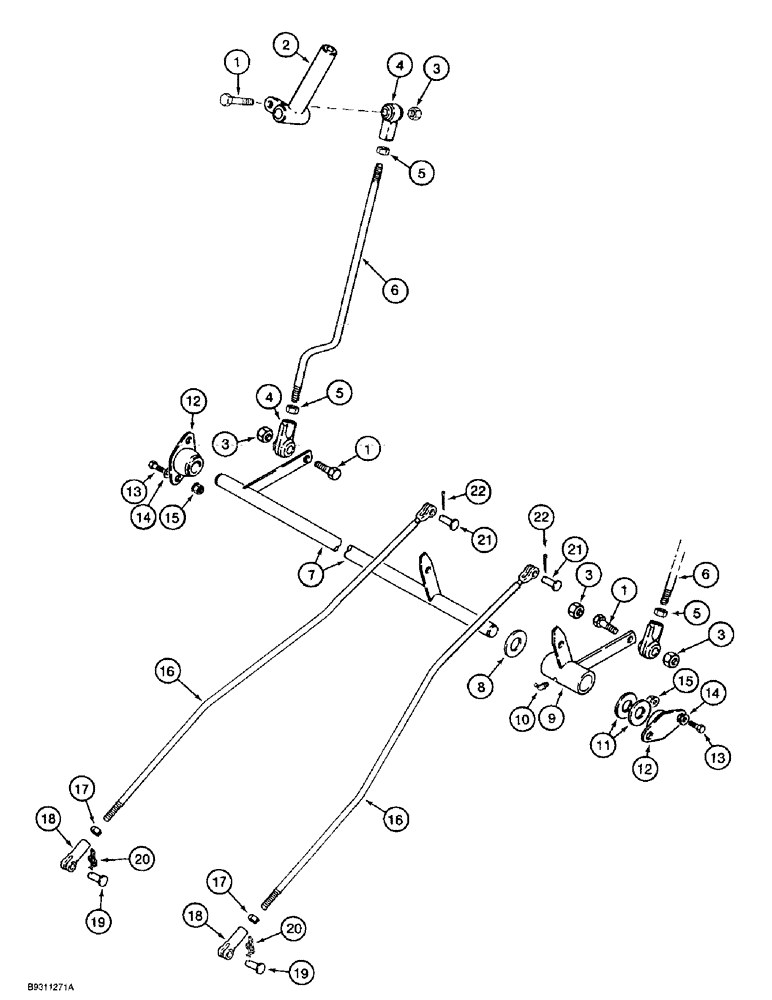

Запчасти Case 1838 (6-04) - LOADER CONTROLS, USED ON MODELS WITH HAND CONTROLS (06) - POWER TRAIN

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

2

D128278

LEVER

pump control

2шт.

3

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

4

A32398

BALL JOINT

JOINT ball, female, rod end, 3/8 inch NF

4шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

4шт.

6

D128257

ROD

control lever to cross shaft

2шт.

7

H673557

SHAFT ASSY.

SHAFT cross, loader

1шт.

8

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened, spacer

1шт.

9

H674387

LEVER

BELLCRANK cross shaft

1шт.

10

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 90 degree, 1/8 PT self-tap x 3/4 inch, Replaces: 219-55 fitting

1шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

2шт.

12

D139039

BEARING ASSY,19mm ID

BEARING flange type, cross shaft mounting

2шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

16

H436766

ROD

loader valve connecting, two bends and crossed, used on models with self-leveling

2шт.

17

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

2шт.

18

H382283

YOKE,5/16" - 24

CLEVIS adjustable, special, clevis valve connecting rod

2шт.

19

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN clevis, loader rod clevis

2шт.

20

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

21

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN clevis, hardened, 5/16 x 15/16 inch

2шт.

22

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.
