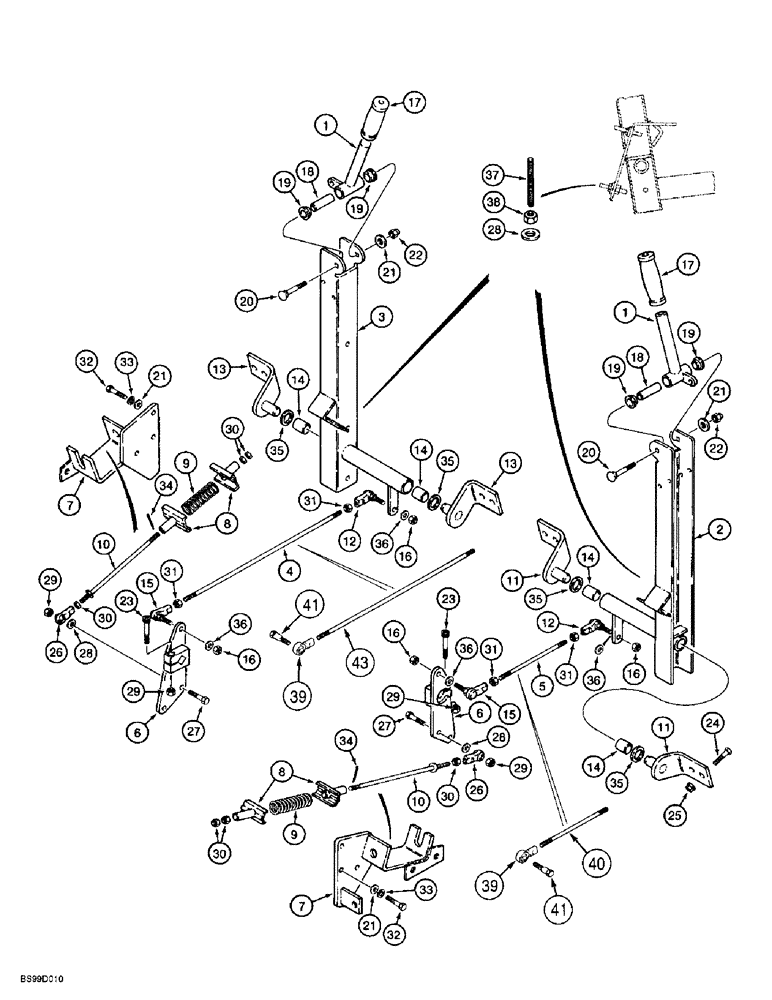

Запчасти Case 1838 (6-02) - CONTROLS - PUMP, FORWARD AND REVERSE (06) - POWER TRAIN

1

D128278

LEVER

pump control

2шт.

2

128098A3

HANDLED SHAFT

ARM control lever, right hand, Replaces: 128098A2 arm

1шт.

3

139829A1

HANDLED SHAFT

ARM control lever, left hand

1шт.

4

128106A2

ROD

control, pump cross shaft, left hand, if used, 420 mm long

1шт.

5

128108A2

STEM

ROD control, pump cross shaft, right hand, if used, 178 mm long

1шт.

6

128093A1

BRACKET

control pivot

2шт.

7

128081A1

SUPPORT

BRACKET centering spring

2шт.

8

186025A1

CUP

RETAINER centering spring, Replaces: H66819 retainer

4шт.

8a

495-81175

WASHER,21/32" x 1" x .120"

flat, used with 186025A1 retainer, 21/32 x 1 x 7/64 inch, not shown

4шт.

9

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

rod

2шт.

10

130021A1

ROD

centering spring

2шт.

11

128254A1

PIVOT

ASSEMBLY, right hand

2шт.

12

139830A1

BALL JOINT

JOINT ball, left-hand thread, 3/8 inch NF

2шт.

13

128102A1

PIVOT

ASSEMBLY, left-hand

2шт.

14

128120A1

BUSHING

arm

4шт.

15

R47940

BALL JOINT

JOINT ball, right hand thread, 3/8 inch NF

2шт.

16

231-2446

NUT,3/8"-24, GB

NUT hex, self locking, 3/8 inch NF

6шт.

17

D128268

HANDLE

GRIP control lever, black

2шт.

18

H435707

SPACER,11.66mm ID x 15.88mm OD x 53mm L

control lever

2шт.

19

D123758

FLANGED BEARING,15.9mm ID x 17.4mm OD x 9.46mm L

BUSHING flange, control lever

4шт.

20

411-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 2

BOLT carriage, grade 2, 5/16 NC x 2-3/4 inch

2шт.

21

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch

10шт.

22

234-10431

CROWN NUT,Crown, 5/16"-18

2шт.

23

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

BOLT hex socket, 3/8 NC x 2-1/4 inch

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

8шт.

25

231-5146

FLANGE NUT,3/8"-16

8шт.

26

S108030

JOINT

ball, female, 3/8 inch NF

2шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

29

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

6шт.

30

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

6шт.

31

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

6шт.

32

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, Full Thd, 8 - 1.25 x 30 mm

6шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

34

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

35

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened

1шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

4шт.

37

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

BOLT hex socket, 3/8 NC x 2-1/4 inch

4шт.

38

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

4шт.

39

193263A1

ISOLATOR

rod end

2шт.

40

192741A1

ROD

control, pump cross shaft, right hand, if used, 164 mm long

1шт.

41

193912A1

BOLT,Special, 3/8" - 24 x 2", Grade 5

shoulder, special

2шт.

42

495-81163

WASHER,17/32" x 1 1/2" x .120"

flat, 17/32 x 1-1/2 x 7/64 inch, not shown

2шт.

43

192742A1

ROD

control, pump cross shaft, left hand, if used, 406 mm long

1шт.

If looking for L.H. nut, 129-289 nut is a 3/8-24 JAM HEX NUT L.H. THD. ZP.cam djo 11/24/99

1шт.
