(4-16) - BACKUP ALARM

Запчасти Case 1838 (4-16) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

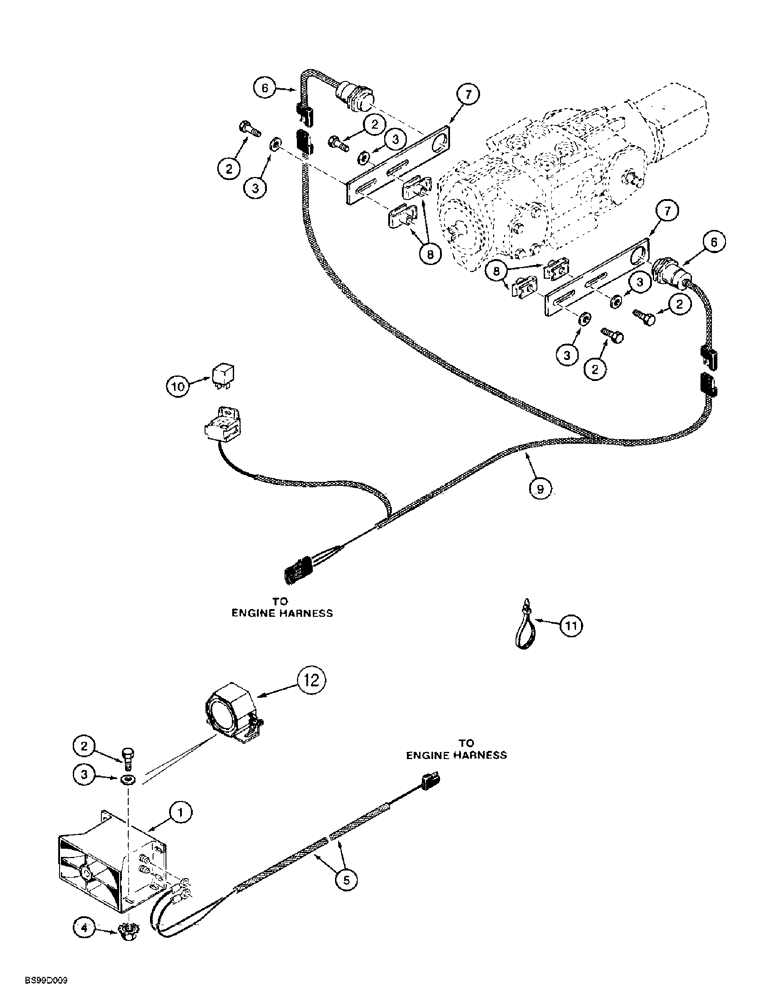

Схема запчастей Case 1838 - (4-16) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS
11
2
6
8
8
3
2
3
6
3
2
4
7
5
10
3
9
1
2
2
7
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D121972

ALARM

backup, if used

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

6шт.

3

H426775

WASHER

flat, special, hardened

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

5

132899A1

HARNESS

alarm pigtail, engine harness to proximity switches

1шт.

6

D136898

SWITCH

proximity

2шт.

7

132900A1

BAR

BRACKET mounting, proximity switch

2шт.

8

H346650

NUT

U-type, 5/16 inch NC

4шт.

9

132901A1

HARNESS

alarm switch, engine harness to backup alarm

1шт.

10

D128310

RELAY

30 ampere, backup alarm

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

12

325258A1

ALARM

ALARM backup, if used, Replaces: 283178A1, 283178A2, 283178A3

1шт.
