Запчасти Case 1838 (4-10) - ENGINE HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS

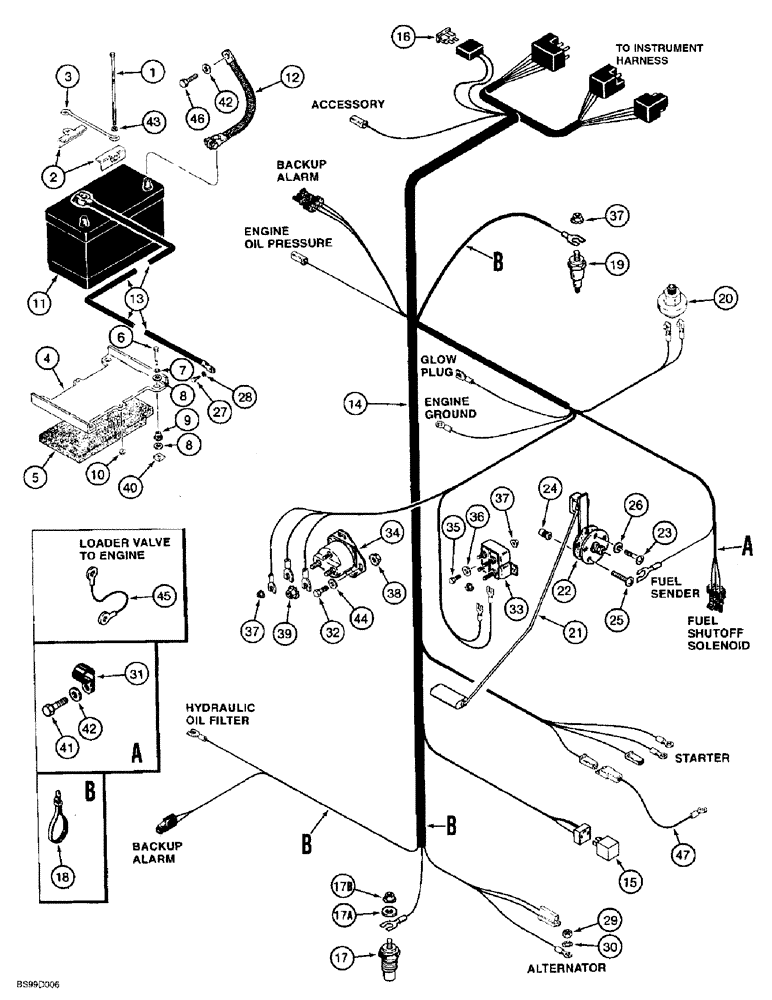

Схема запчастей Case 1838 - (4-10) - ENGINE HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS
29
7
37
46
2
9
30
34
24
3
12
5
1
42
35
11
44
6
37
16
45
13
42
17
40
8
20
39
8
18
4
17b
14
32
41
47
33
19
23
37
26
25
43
15
21
27
22
17a
10
31
28
38
36

Артикул

Название

Примечание

Количество

1

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

hex, 3/8 NC x 9-1/2 inch

2шт.

2

D125079

BRACKET

battery hold-down

2шт.

3

D135073

BRACKET

ROD battery hold-down

1шт.

4

H437552

SUPPORT

TRAY battery, 3 mm thick

1шт.

5

H435275

SPACER

PAD rubber, battery tray

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

495-21050

WASHER,7/16"

flat, 1/2 x 1-1/4 x 5/64 inch

8шт.

9

H438341

O-RING

INSULATOR rubber, battery tray

4шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt

1шт.

12

H437801

CABLE

battery, negative

1шт.

13

H433291

CABLE

battery, positive

1шт.

14

129000A3

HARNESS

engine

1шт.

15

D128310

RELAY

30 ampere, starter

1шт.

16

A149804

FUSE

light green, 30 ampere

1шт.

17

1983238C1

SENSOR,1/2" - 14

SENDER engine coolant temperature, Includes: nut, Includes Ref. 17A, 17B

1шт.

17a

195-513

WASHER,#10

flat, 7/32 x 1/2 x 3/64 inch

1шт.

17b

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

4шт.

19

H439301

SWITCH

hydraulic oil temperature

1шт.

20

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

21

D125062

TRANSMITTER

SENDER fuel level

1шт.

22

A11822

GASKET

fuel sender

1шт.

23

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

machine, pan Phillips, No. 10 NF x 3/4 inch

1шт.

24

H435860

INSERT

threaded, fuel gauge sender mounting

5шт.

25

H435859

SCREW,#10 - 32 x 3/4"

special, sealing

4шт.

26

D83885

WASHER

flat, copper, special

1шт.

27

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

825-1406

NUT,M6, Cl 8

1шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type 1/2", Insul, 1/2" Bolt

2шт.

32

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

1шт.

33

L11343

BREAKER

60 ampere, glow plug

1шт.

34

A39079

SOLENOID

magnetic relay, glow plug

1шт.

35

463-61012

SCREW,Hex Hd, #10-32 x 3/4"

machine, hex head, No. 10 NF x 3/4 inch

2шт.

36

495-31022

WASHER,#10

2шт.

37

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

3шт.

38

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, with external tooth lock, 1/4 inch

1шт.

39

193-1009

NUT,Keps, w/LW, 5/16"-18

hex, with external tooth lock washer, 5/16 NC

2шт.

40

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

4шт.

41

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

2шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

44

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

45

D87572

ELECTRICAL WIRE

WIRE ground, loader control, Serial Range: valve-engine

1шт.

46

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

47

139368A1

ELECTRICAL WIRE

WIRE jumper, starter motor

1шт.

Выбрано товаров: 49
