(3-17A) - ENGINE CONTROLS, THROTTLE BALL JOINT TO OUTSIDE OF LEVER

Запчасти Case 1838 (3-17A) - ENGINE CONTROLS, THROTTLE BALL JOINT TO OUTSIDE OF LEVER (03) - FUEL SYSTEM

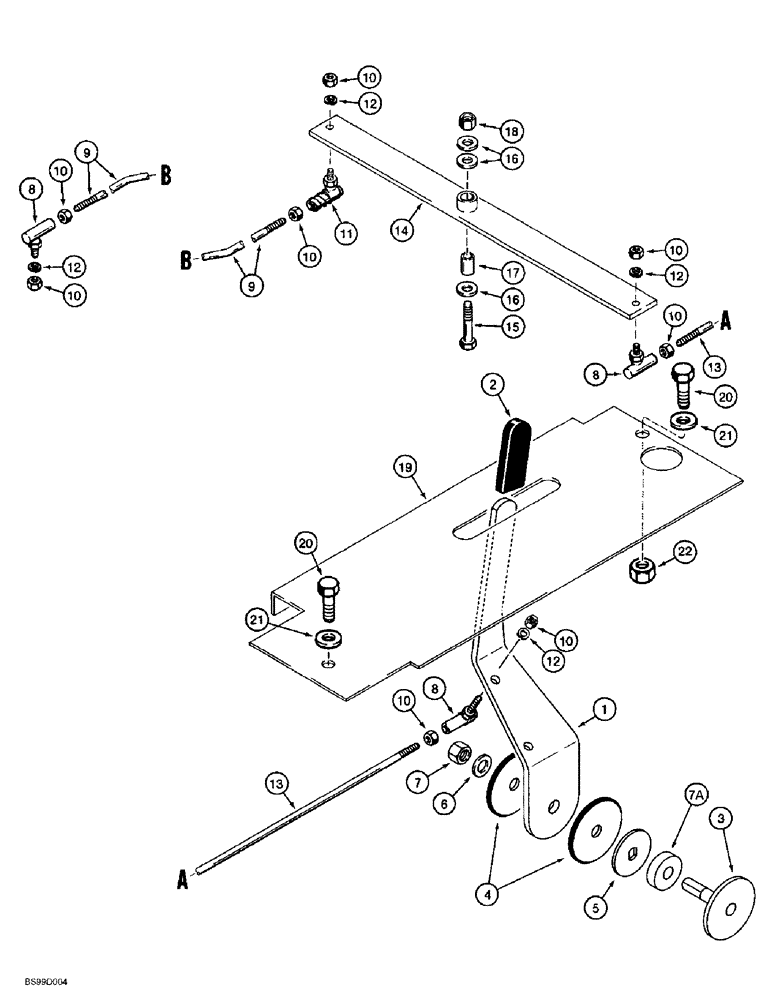

Схема запчастей Case 1838 - (3-17A) - ENGINE CONTROLS, THROTTLE BALL JOINT TO OUTSIDE OF LEVER (03) - FUEL SYSTEM
4
17
8
21
8
18
16
12
10
19
13
16
1
3
10
10
2
12
6
10
11
22
8
15
7
21
10
20
12
10
10
7a
14
5
12
9
9
10
20
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

291245A1

HANDLE

LEVER throttle control

1шт.

2

D126613

HANDLE

GRIP lever, vinyl

1шт.

3

291244A1

LEVER

PIVOT throttle

1шт.

4

1342374C1

DISC

friction

2шт.

5

257971A1

WASHER,13.1mm ID x 48mm OD x 3.05mm Thk

slotted, special, throttle lever

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

7

832-41312

NUT,M12 x 1.75, Cl 10

NUT hex, self locking, 10, 12 mm, 1.75 inch, class 20

2шт.

7a

257973A1

SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk

rubber, special

1шт.

8

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, 1/4 inch NF

3шт.

9

128495A1

ROD

throttle

1шт.

10

425-114

NUT,1/4"-28, G5

Quick release 1/4"-28, G5

8шт.

11

H169920

BALL JOINT

JOINT ball, 1/4 inch NF

1шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

128496A1

ROD

throttle

1шт.

14

128492A1

PIVOT ASSY.

PIVOT throttle

1шт.

15

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

17

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

throttle pivot

1шт.

18

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

19

121042A1

COVER

PANEL right hand closure

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

21

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

1шт.
