(3-16) - ENGINE CONTROLS, THROTTLE BALL JOINT TO INSIDE OF LEVER

Запчасти Case 1838 (3-16) - ENGINE CONTROLS, THROTTLE BALL JOINT TO INSIDE OF LEVER (03) - FUEL SYSTEM

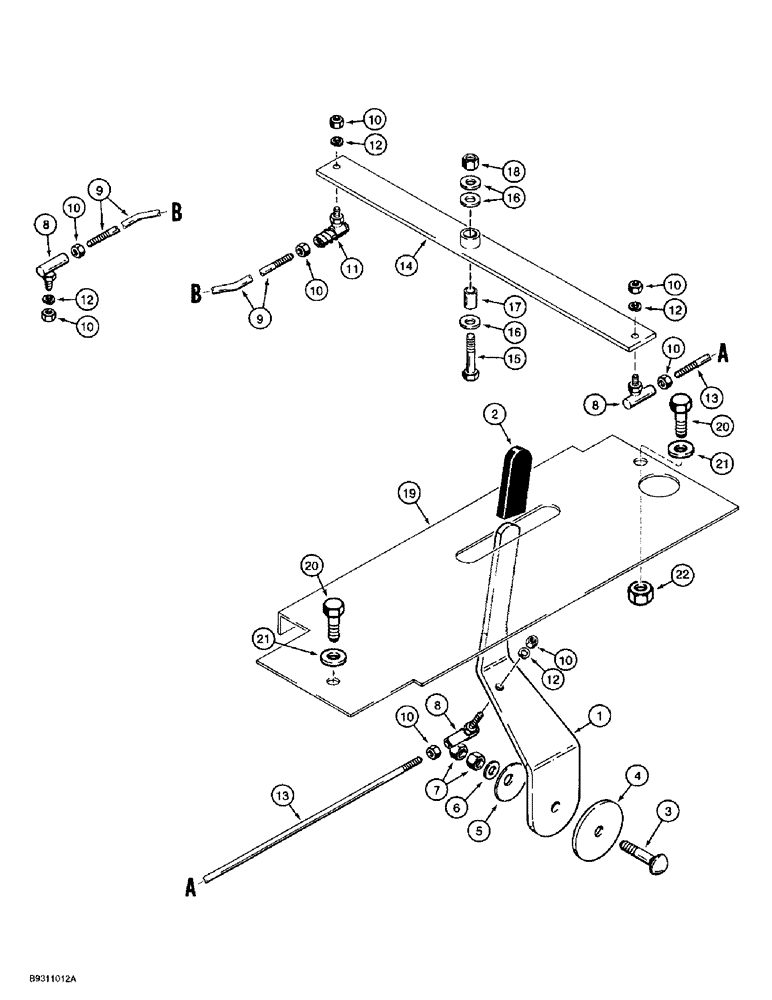

Схема запчастей Case 1838 - (3-16) - ENGINE CONTROLS, THROTTLE BALL JOINT TO INSIDE OF LEVER (03) - FUEL SYSTEM
19
10
10
16
21
7
22
10
2
6
10
10
18
10
11
17
5
13
12
10
1
14
12
9
13
12
9
4
15
3
20
16
8
8
21
10
20
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H435848

HANDLE

LEVER throttle control

1шт.

2

D126613

HANDLE

GRIP lever, vinyl

1шт.

3

111-381

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

1шт.

4

R15071

DISC

friction

1шт.

5

R14771

WASHER

SPRING Belleville, throttle lever

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, 1/4 inch NF

3шт.

9

128495A1

ROD

throttle

1шт.

10

425-114

NUT,1/4"-28, G5

Quick release 1/4"-28, G5

8шт.

11

H169920

BALL JOINT

JOINT ball, 1/4 inch NF

1шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

128496A1

ROD

throttle

1шт.

14

128492A1

PIVOT ASSY.

PIVOT throttle

1шт.

15

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

17

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

throttle pivot

1шт.

18

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

19

121042A1

COVER

PANEL right hand closure

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

21

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

1шт.
