Запчасти Case 1838 (3-14) - FUEL LINES (03) - FUEL SYSTEM

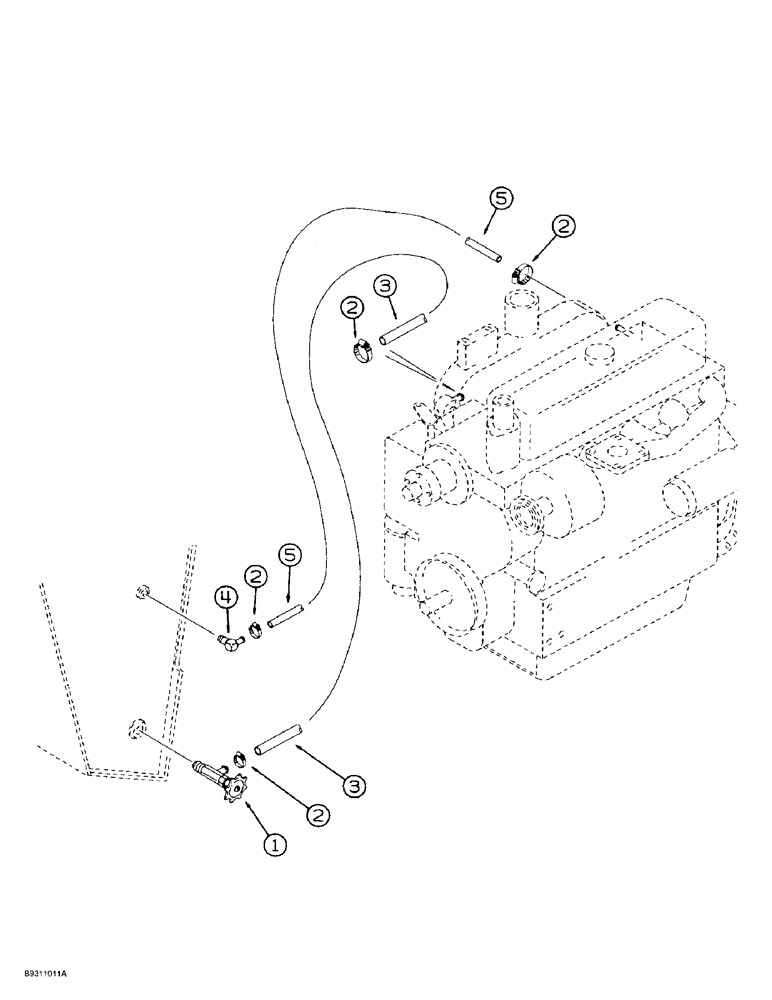

Схема запчастей Case 1838 - (3-14) - FUEL LINES (03) - FUEL SYSTEM
3
2
2
5
5
2
3
4
1
2

Артикул

Название

Примечание

Количество

1

H434805

VALVE

fuel shutoff

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

4шт.

3

131065A1

HOSE

cut from A21562X bulk hose, fuel supply to transfer pump, see below, 670 mm, 26-3/8 inch long

1шт.

Fuel tank is located in the chassis, see Figure 9-2.

1шт.

4

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW 90 degree, 1/4 barb end x 1/8 inch PT

1шт.

5

131069A2

HOSE

cut from A21561X bulk hose, fuel return, see below, 860 mm, 33-7/8 inch long

1шт.

Fuel tank is located in the chassis, see Figure 9-2.

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

bulk, 6 1/4 x 13 1/2 x 7620 mm, 300 inch long

1шт.

Fuel tank is located in the chassis, see Figure 9-2.

1шт.

A21562X

LARGE HOSE,9.65mm ID x 711.2mm L

HOSE bulk, 10 3/8 ID x 7620 mm, 300 inch long

1шт.

Fuel tank is located in the chassis, see Figure 9-2.

1шт.

Выбрано товаров: 11
