(3-12) - FUEL INJECTION PUMP ASSEMBLY, KUBOTA V2203 ENGINE

Запчасти Case 1838 (3-12) - FUEL INJECTION PUMP ASSEMBLY, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM

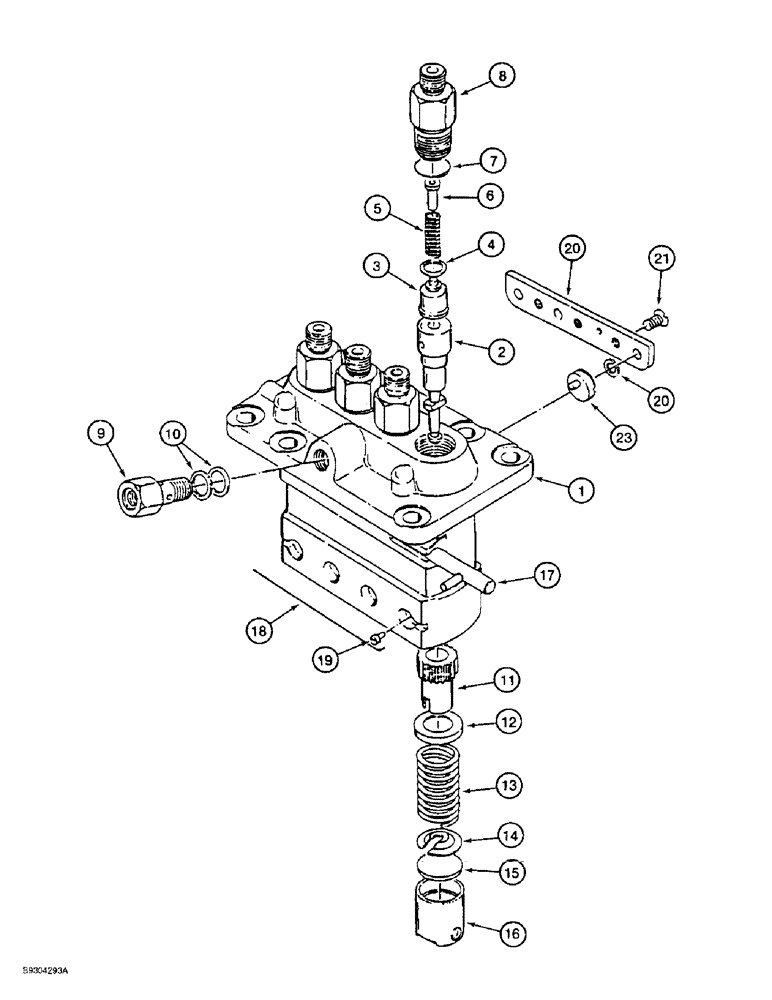

Схема запчастей Case 1838 - (3-12) - FUEL INJECTION PUMP ASSEMBLY, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM
3
13
17
12
11
10
9
14
1
15
4
2
7
16
16
6
6
19
20
20
8
21
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

126964A1

PUMP

ASSEMBLY, fuel injection, Includes Ref. 1-23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING injection pump

1шт.

2

126983A1

PLUNGER

pump

4шт.

3

126981A1

VALVE

delivery

4шт.

4

1959532C1

GASKET

delivery valve

4шт.

5

126976A1

SPRING

delivery valve

4шт.

6

126978A1

SPACER

spring

4шт.

7

1959534C1

O-RING

delivery valve

4шт.

8

1959533C1

HOLDER

NUT cap, delivery valve

4шт.

9

1959551C1

SCREW

adjusting

1шт.

10

1959552C1

WASHER

GASKET adjusting screw

2шт.

11

1959543C1

SLEEVE

control

4шт.

12

1959539C1

SEAT

spring, upper

4шт.

13

126989A1

SPRING

plunger

4шт.

14

1959540C1

SEAT

spring, lower

4шт.

15

1959541C1

SHIM

tappet

4шт.

16

1959535C1

TAPPET

pump

4шт.

17

126985A1

RACK

control

1шт.

18

126987A1

PIN

clamp, Includes Ref. 19

2шт.

19

1959536C1

PIN

tappet guide

4шт.

20

126974A1

PLATE

adjusting

1шт.

21

1959549C1

BOLT

adjusting plate

3шт.

22

221638A1

SPRING WASHER

spring, special, not shown

3шт.

23

1959546C1

COLLAR

STOP adjusting plate

3шт.
