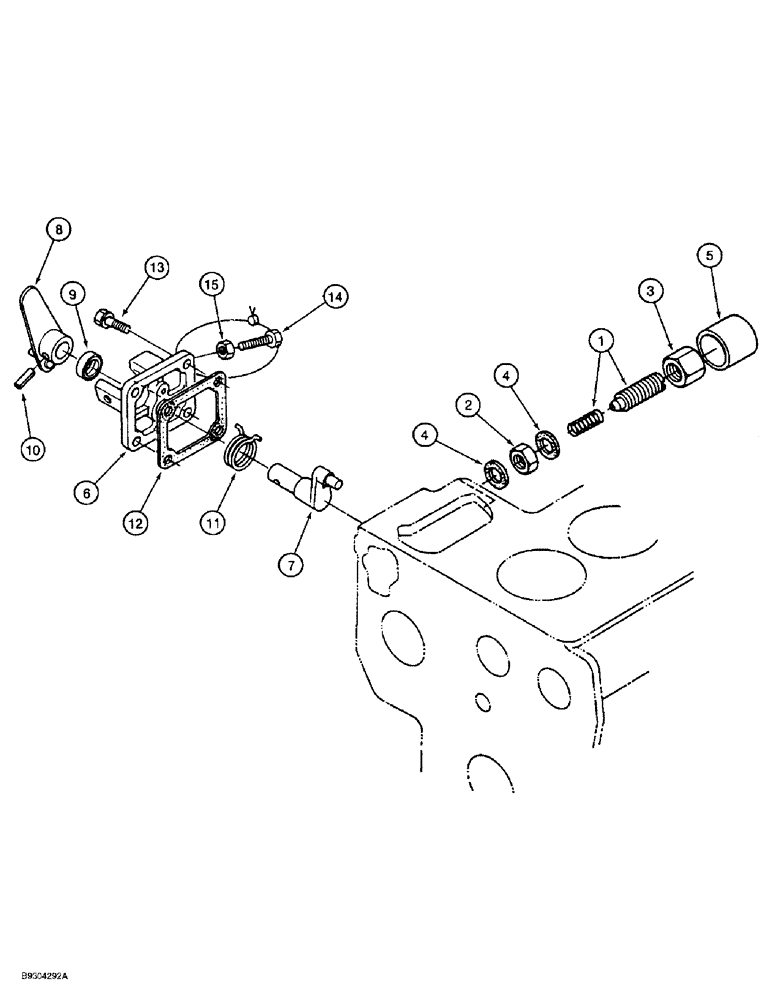

Запчасти Case 1838 (3-10) - IDLING APPARATUS, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM

221634A1

KIT

IDLER ASSEMBLY, engine, Includes Ref. 1-5

1шт.

1

221643A1

HARDWARE

BOLT adjusting, two part

1шт.

2

127094A1

NUT

hex, special

1шт.

3

127096A1

NUT

cap

1шт.

4

1959329C1

WASHER

GASKET idler

2шт.

Part of lower gasket kit 355815A1

1шт.

5

127097A1

CAP

adjusting bolt

1шт.

221635A1

LEVER

ASSEMBLY, engine stop, Includes Ref. 6-11

1шт.

6

221640A1

COVER

injection pump

1шт.

7

127100A1

SHAFT

lever

1шт.

8

127101A1

LEVER

engine stop

1шт.

9

125547A1

OIL SEAL

SEAL oil

1шт.

Part of lower gasket kit 355815A1

1шт.

10

1959337C1

PIN

roll

1шт.

11

127102A1

SPRING

return

1шт.

12

127103A1

GASKET

pump cover

1шт.

13

1959155C1

BOLT

BOLT hex, captive washer, special

4шт.

14

1959339C1

PIN

BOLT spring return stop, M6 x 30 mm

1шт.

15

1959205C1

NUT

hex, special

1шт.

355815A1

GASKET KIT

KIT lower gasket, Includes: Ref. 4 and 9 and Ref. shown on Figures 2-9, 2-23 and 3-9, Includes Ref. not used in this application

1шт.
