(3-02) - FUEL INJECTION SYSTEM, KUBOTA V2203 ENGINE

Запчасти Case 1838 (3-02) - FUEL INJECTION SYSTEM, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM

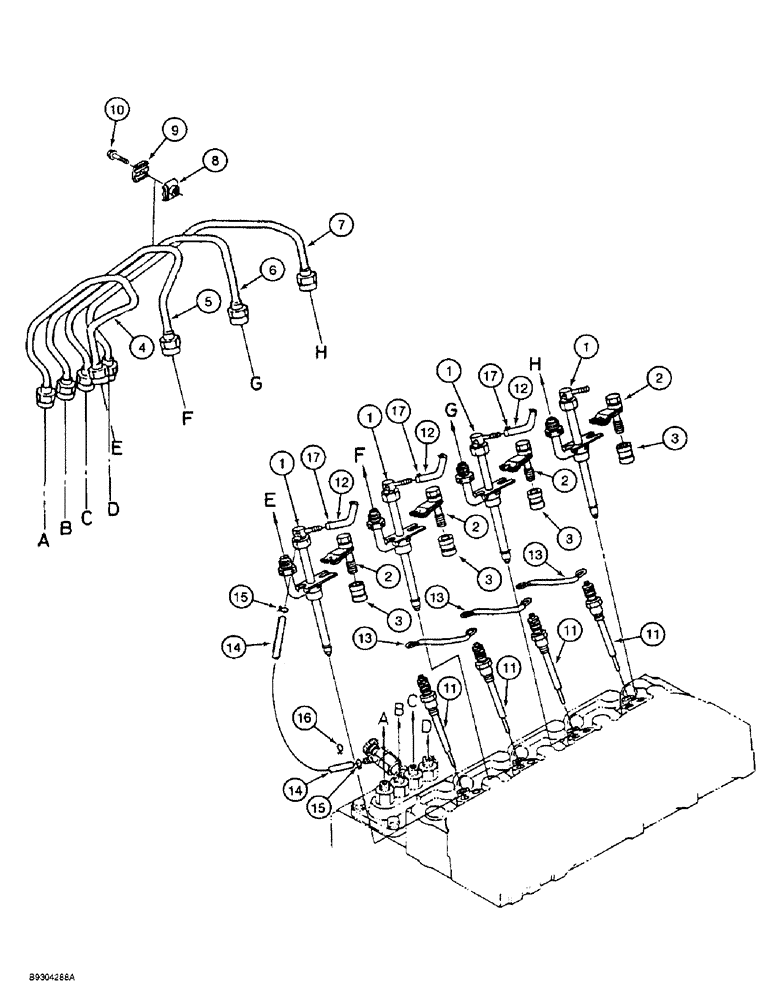

Схема запчастей Case 1838 - (3-02) - FUEL INJECTION SYSTEM, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM
2
16
12
14
12
10
9
3
17
2
12
1
2
4
3
11
2
11
11
14
1
13
7
6
3
15
17
13
13
8
11
3
1
1
15
17
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126937A1

NOZZLE INJECTION

NOZZLE ASSEMBLY, fuel injection, component parts not serviced separately

4шт.

2

126940A1

NOZZLE INJECTION

CLAMP injector nozzle

4шт.

3

126941A1

SPACER

injector nozzle

4шт.

4

126944A1

PIPE

TUBE fuel injector, No. 1 cylinder

1шт.

5

126947A1

PIPE

TUBE fuel injector, No. 2 cylinder

1шт.

6

126949A1

PIPE

TUBE fuel injector, No. 3 cylinder

1шт.

7

126951A1

PIPE

TUBE fuel injector, No. 4 cylinder

1шт.

8

1959393C1

HOSE CLIP

CLAMP fuel tube

3шт.

9

1959394C1

HOSE CLIP

CLAMP fuel tube

3шт.

10

1959395C1

SCREW

BOLT hex, captive washer, special

3шт.

11

126953A1

GLOW PLUG

PLUG glow

4шт.

12

126957A1

PIPE

TUBE fuel overflow

3шт.

13

126955A1

ELECTRICAL WIRE

WIRE glow plug

3шт.

14

126959A1

PIPE ASSY.

TUBE start, Includes Ref. 15

1шт.

15

1959490C1

CLAMP

tube

2шт.

16

126961A1

CLAMP

tube

1шт.

17

1959490C1

CLAMP

tube

6шт.
