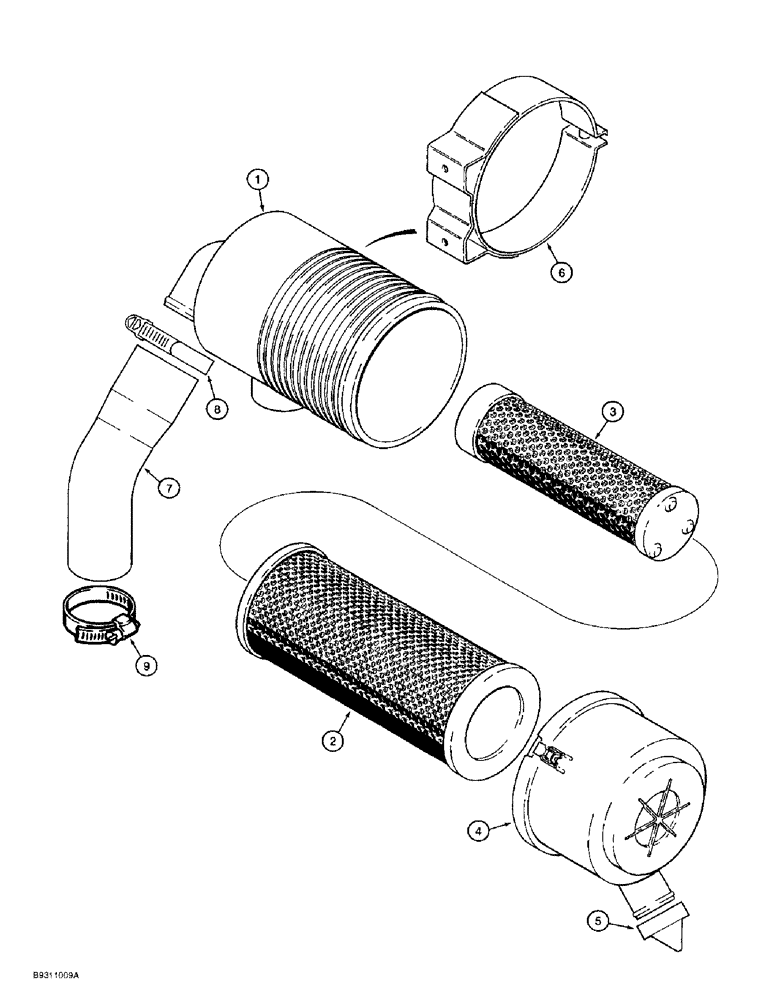

Запчасти Case 1838 (2-34) - AIR CLEANER AND MOUNTING (02) - ENGINE

1

134439A1

AIR CLEANER

CLEANER ASSEMBLY, air, Includes Ref. 2-5

1шт.

For bracket that air cleaner is mounted to, see Figure 8-17, Ref. 24.

1шт.

2

133720A1

AIR FILTER

ELEMENT primary

1шт.

3

133721A1

AIR FILTER

ELEMENT secondary

1шт.

4

133723A1

COVER

air cleaner

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

VALVE dust

1шт.

6

132132A1

CLAMP

filter mounting

1шт.

7

134440A1

HOSE

air cleaner

1шт.

8

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

1шт.

9

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, used to mount air cleaner clamp to bracket, not shown, 8 - 1.25 x 25 mm

2шт.

11

H426775

WASHER

flat, special, hardened, used to mount air cleaner clamp to bracket, not shown

2шт.
