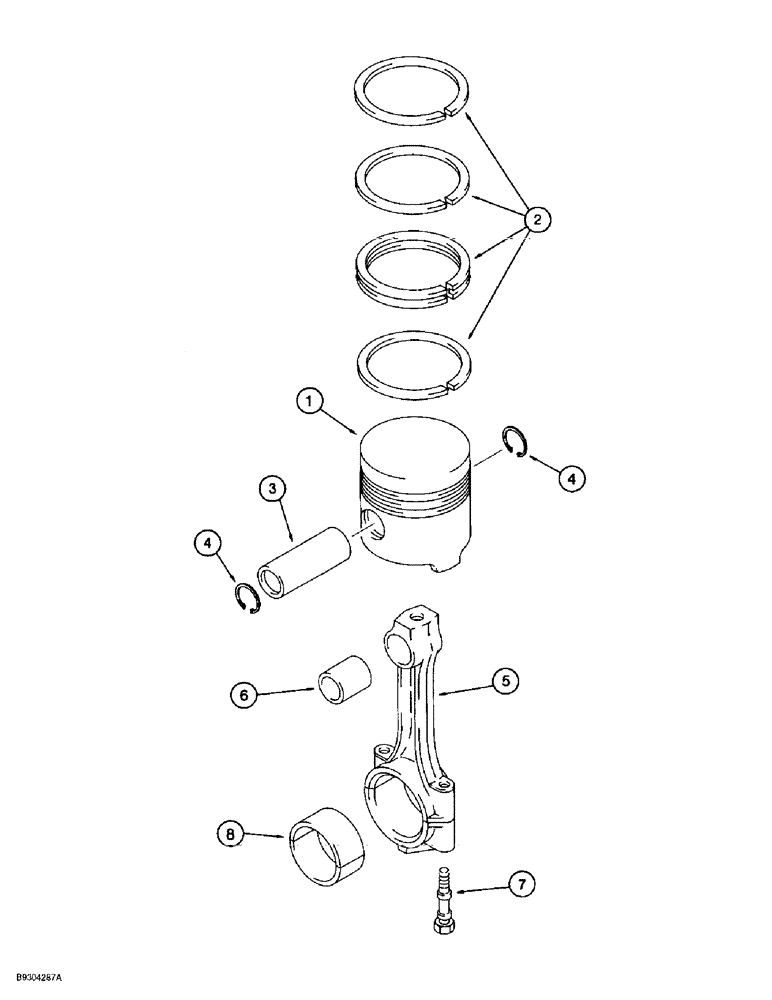

Запчасти Case 1838 (2-28) - PISTONS AND CONNECTING RODS, KUBOTA V2203 ENGINE (02) - ENGINE

1

126501A1

PISTON

standard

4шт.

1

246268A1

PISTON

0.5 mm, oversize

4шт.

2

126502A1

SET

RING piston, set, standard

4шт.

2

126503A1

SET

RING piston, set, 0.5 mm, oversize

4шт.

3

126504A1

PIN

piston

4шт.

4

126505A1

RETAINER

RING snap, piston pin

8шт.

126506A1

ROD ASSY.

ROD ASSEMBLY, connecting, Includes Ref. 5-8

4шт.

5

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

6

221637A1

BUSHING

piston pin

1шт.

7

126508A1

BOLT

connecting rod

2шт.

8

126509A1

CRANKSHAFT BEARING

crank pin, standard

1шт.

8

126510A1

BEARING

crank pin, 0.2 mm, undersize

1шт.

8

126511A1

BEARING

crank pin, 0.4 mm, undersize

1шт.
