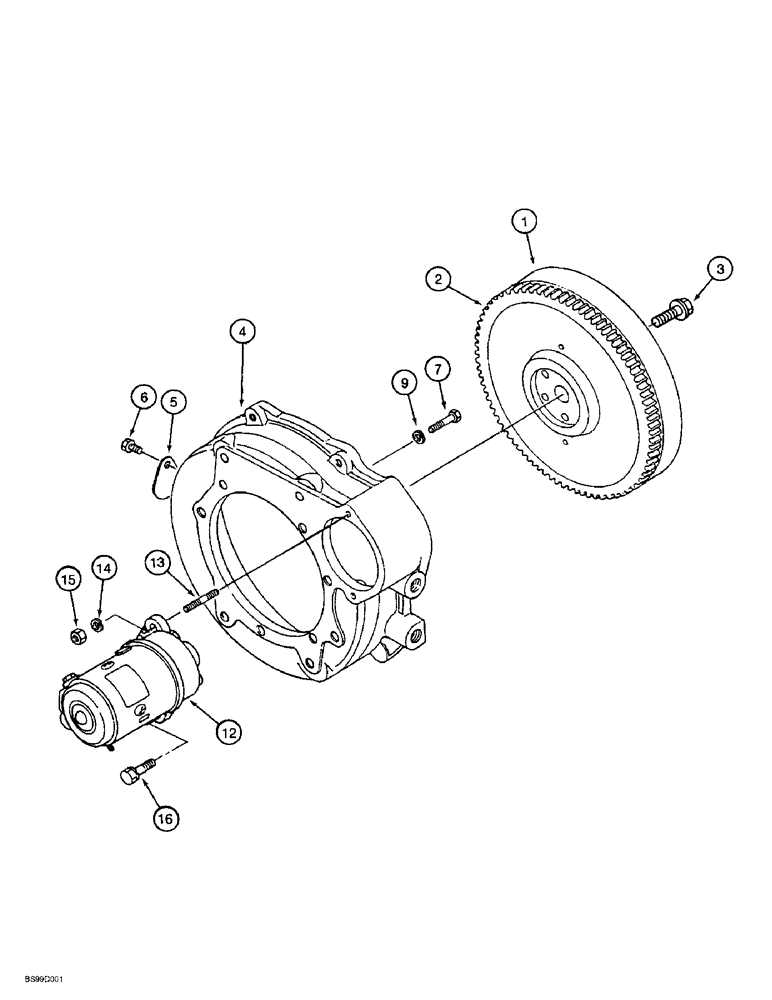

Запчасти Case 1838 (2-26) - FLYWHEEL AND STARTER MOTOR, KUBOTA V2203 ENGINE (02) - ENGINE

1

126885A1

FLYWHEEL

ASSEMBLY, crankshaft, Includes Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

3

126886A1

BOLT

flywheel

6шт.

4

221618A1

HOUSING

flywheel

1шт.

5

126888A1

COVER

flywheel housing

1шт.

6

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

2шт.

7

126889A1

BOLT

hex, special

8шт.

9

202508A1

SCREW

WASHER spring

11шт.

12

126895A1

STARTING MOTOR

STARTER ASSEMBLY, engine, parts list Figure 4-4

1шт.

13

126924A1

STUD

starter mounting

1шт.

14

1959270C1

WASHER, LOCK

WASHER lock, 10 mm

1шт.

15

126930A1

NUT

hex, special

1шт.

16

126927A1

BOLT

hex, special

1шт.
