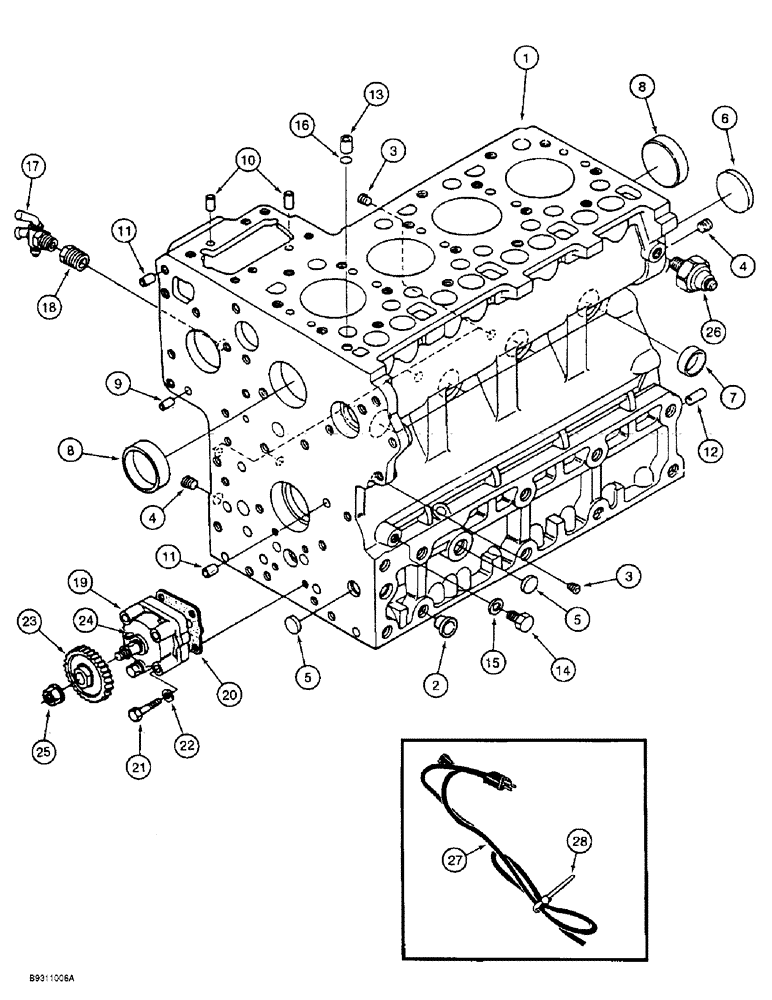

Запчасти Case 1838 (2-20) - CYLINDER BLOCK ASSEMBLY KUBOTA V2203 ENGINE, COLD START SYSTEM (02) - ENGINE

221613A1

BLOCK ASSY.

BLOCK ASSEMBLY, cylinder, Includes Ref. 1-13

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

2

125168A1

PLUG

sealing

2шт.

3

1959127C1

PLUG

hex socket

6шт.

4

1959128C1

PLUG

hex socket

2шт.

5

200269A1

PLUG

expansion

3шт.

6

503206

PLUG

expansion

1шт.

7

125171A1

CAP

sealing

6шт.

8

125172A1

CAP

sealing

2шт.

9

125173A1

PIN

straight

2шт.

10

1959129C1

PIN

straight

2шт.

11

125174A1

PIN

straight

2шт.

12

125175A1

PIN

straight

1шт.

13

1959132C1

PIN

pipe

1шт.

14

125176A1

PLUG

sealing

1шт.

15

1959329C1

WASHER

GASKET plug

1шт.

16

1959135C1

O-RING,6.57mm ID x 2.325mm Width

sealing, pipe pin

1шт.

Part of Upper Gasket Kit, P/N 355814A1

1шт.

17

125177A1

DRAIN VALVE

VALVE drain

1шт.

18

125178A1

GASKET

ADAPTER drain valve

1шт.

19

125179A1

PUMP

oil

1шт.

20

125181A1

GASKET

oil pump

1шт.

21

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

4шт.

22

1959206C1

SPRING WASHER

lock, special

4шт.

23

125182A1

GEAR

oil pump drive

1шт.

24

1959156C1

KEY

feather, oil pump

1шт.

25

125183A1

FLANGE NUT

flange, special

1шт.

26

1959159C1

PRESSURE SWITCH

SWITCH engine oil pressure

1шт.

123983A1

ENGINE ASSEMBLY

Kubota V2203, complete

1шт.

H939397

KIT

cold start, no longer available, order components separately, Includes instruction installation, Includes Ref. 27-28, cold start system

1шт.

27

117492A1

HEATER

engine block, cold start system

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, cold start system, 15 inch, cold stasrt system

1шт.

355814A1

GASKET KIT

KIT upper gasket, cold start, Includes Ref. 16 and Ref. shown on Figures 2-11, 2-13, and 2-17, Includes Ref. not used in this application, cold start system

1шт.
