(2-12) - THERMOSTAT HOUSING AND TUBES, KUBOTA V2203 ENGINE

Запчасти Case 1838 (2-12) - THERMOSTAT HOUSING AND TUBES, KUBOTA V2203 ENGINE (02) - ENGINE

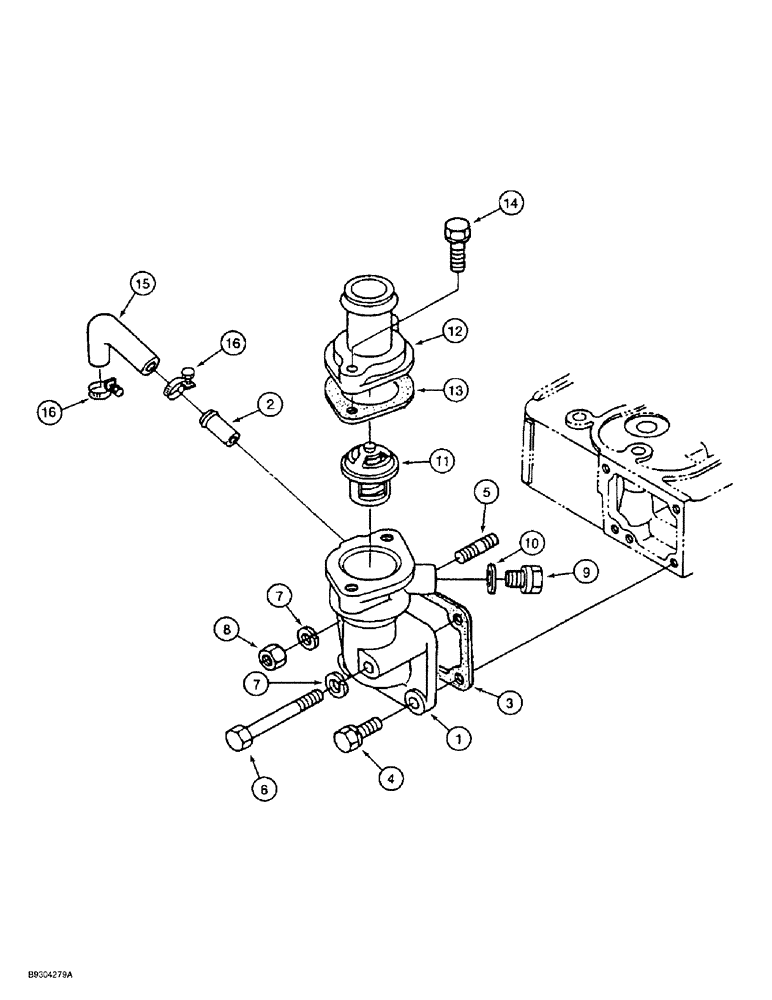

Схема запчастей Case 1838 - (2-12) - THERMOSTAT HOUSING AND TUBES, KUBOTA V2203 ENGINE (02) - ENGINE
5
14
3
2
1
11
7
16
7
15
9
6
16
10
4
15
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

127116A1

FLANGE

HOUSING thermostat, Includes Ref. 2

1шт.

127116A1 HAS BEEN REINSTATED ON ECN H999023.

1шт.

2

127117A1

PIPE

TUBE water return

1шт.

3

127119A1

GASKET

thermostat housing

1шт.

4

1959456C1

BOLT

hex, special

2шт.

5

1959265C1

STUD

thermostat housing

1шт.

6

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

hex, 8 - 1.25 x 70 mm

1шт.

7

1959162C1

LOCK WASHER

lock

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

9

127126A1

PLUG

thermostat housing

1шт.

10

127127A1

GASKET

plug

1шт.

Part of Upper Gasket Kit, P/N 355814A1

1шт.

11

127128A1

THERMOSTAT

water

1шт.

12

127129A1

COVER

thermostat

1шт.

13

127130A1

GASKET

thermostat cover

1шт.

14

1959494C1

BOLT

hex washer head

2шт.

15

127122A1

PIPE

TUBE water return

1шт.

16

127125A1

BRAKE BAND

CLAMP tube

2шт.

355814A1

GASKET KIT

KIT upper gasket, Includes Ref.10 and parts shown on Figures 2-11, 2-17 and 2-21, Includes Ref. not used in this application

1шт.
