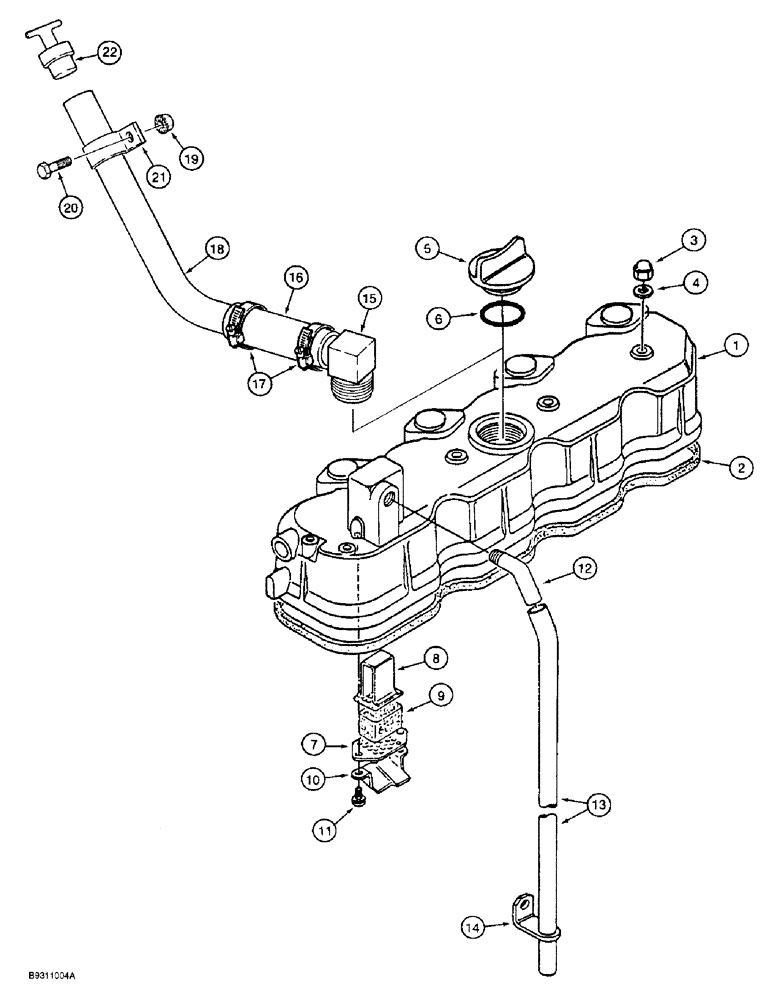

Запчасти Case 1838 (2-10) - CYLINDER HEAD COVER, KUBOTA V2203 ENGINE (02) - ENGINE

1

133049A1

COVER

cylinder head

1шт.

2

126402A1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

Part of Upper Gasket Kit, P/N 355814A1

1шт.

3

126403A1

NUT

cap

4шт.

4

1959329C1

WASHER

GASKET nut

4шт.

Part of Upper Gasket Kit, P/N 355814A1

1шт.

5

125312A1

PLUG

CAP oil filler

1шт.

6

1959239C1

O-RING

oil filler cap

1шт.

Part of Upper Gasket Kit, P/N 355814A1

1шт.

7

126404A1

PLATE

breather element, lower

1шт.

8

1959246C1

PLATE

breather element, upper

1шт.

9

1959247C1

FILTER, ELEMENT

ELEMENT breather

1шт.

10

126405A1

SHIELD

breather

1шт.

11

202315A1

SCREW

with washer

2шт.

12

1959250C1

JOINING ELEMENT

ELBOW breather tube

1шт.

13

126410A1

PIPE

TUBE breather

1шт.

14

126411A1

CLAMP

pipe

1шт.

15

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

90 degree, 1-1/4 stem end x 1 inch PT

1шт.

Not part of the engine assembly.

1шт.

16

135922A1

HOSE,31.75 mm ID x 110.00, SAE 100R3

oil fill, 110 mm, 4-5/16 inch long

1шт.

Not part of the engine assembly.

1шт.

17

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

Not part of the engine assembly.

1шт.

18

135915A1

TUBE,32 mm OD, 241, 183 mm Length

oil fill

1шт.

Not part of the engine assembly.

1шт.

19

231-5146

FLANGE NUT,3/8"-16

1шт.

Not part of the engine assembly.

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

Not part of the engine assembly.

1шт.

21

135934A1

CLAMP

P-type, oil fill tube

1шт.

Not part of the engine assembly.

1шт.

22

831821C1

PLUG

CAP fill, engine oil

1шт.

Not part of the engine assembly.

1шт.

355814A1

GASKET KIT

KIT upper gasket, Includes Ref. 2, 4, and 6, not used in this application

1шт.
