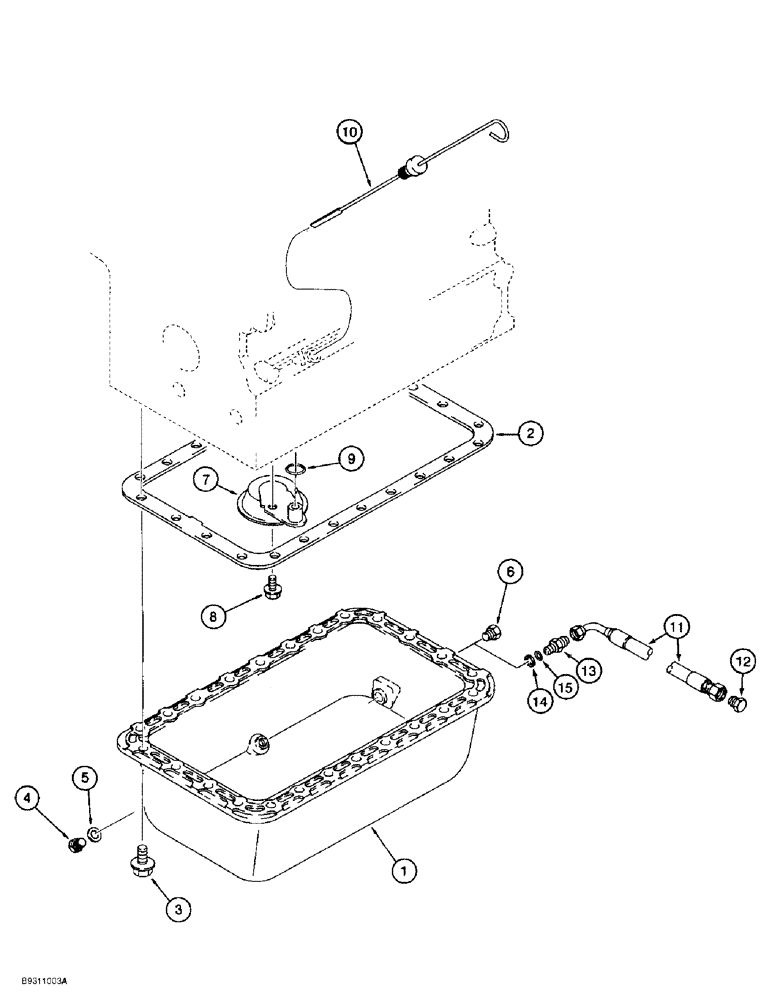

Запчасти Case 1838 (2-08) - OIL PAN, KUBOTA V2203 ENGINE (02) - ENGINE

1

125192A1

PAN, ENGINE OIL

PAN oil

1шт.

2

125194A1

OIL PAN GASKET SET

oil pan

1шт.

3

125196A1

FLANGE BOLT

flange, special

24шт.

4

1959149C1

PLUG

drain

1шт.

5

1959150C1

SEALING WASHER

flat, 12 x 16 x 1.5 mm

1шт.

Part of Lower Gasket Kit, P/N 355815A1

1шт.

6

125197A1

PLUG

drain, remove to install, Ref. 11 through 15

1шт.

7

125199A1

FILTER, ENGINE OIL

FILTER screen, oil

1шт.

8

1959164C1

BOLT

special, oil filter

1шт.

9

125200A1

O-RING

oil filter

1шт.

Part of Lower Gasket Kit, P/N 355815A1

1шт.

10

133747A1

DIPSTICK

engine oil

1шт.

11

135845A1

HOSE

engine oil drain, 450 mm, 17-3/4 inch long

1шт.

Not part of the engine assembly.

1шт.

12

218-775

PLUG,3/4"-16, 37 Degree

hex, Engine oil drain, 3/4-16 inch flare

1шт.

Not part of the engine assembly.

1шт.

13

136402A1

FITTING

ADAPTER ASSEMBLY, straight, oil pan to hose, Includes Ref. 14-15

1шт.

Not part of the engine assembly.

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET adapter

1шт.

Not part of the engine assembly.

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING adapter

1шт.

Not part of the engine assembly.

1шт.

355815A1

GASKET KIT

KIT lower gasket, Includes: Refs. 5 and 9, Includes Ref. not used in this application

1шт.
