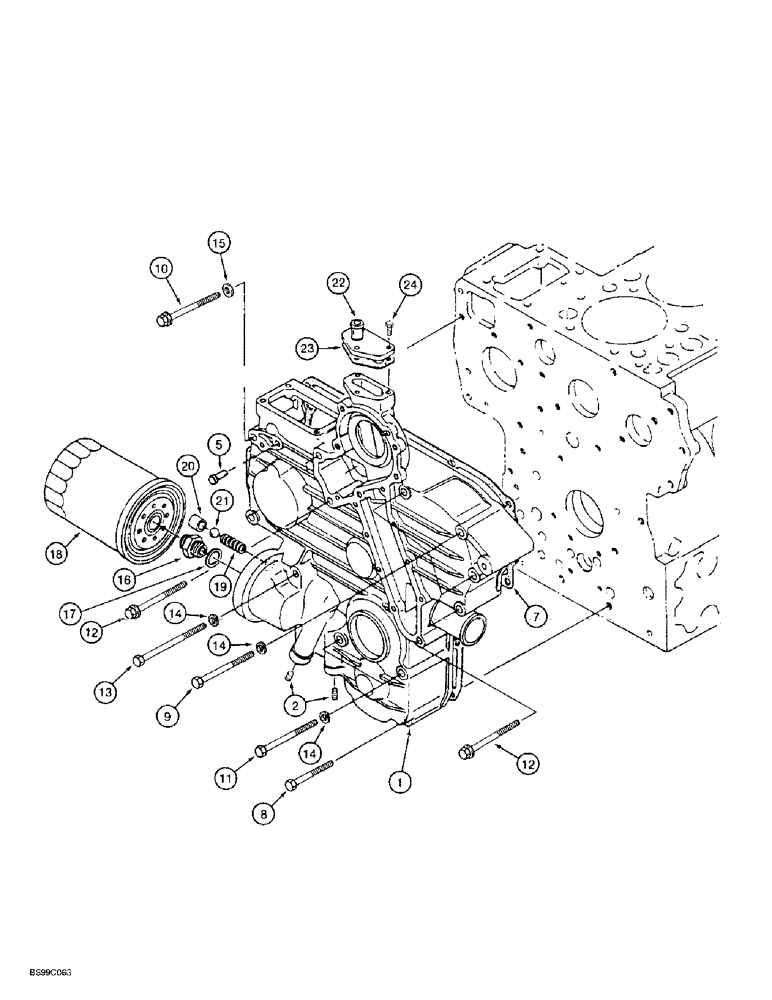

Запчасти Case 1838 (2-04) - FRONT GEAR COVER, KUBOTA V2203 ENGINE (02) - ENGINE

231488A1

BOX

COVER ASSEMBLY, gear, front, Includes Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

COVER gear, front

1шт.

2

1959188C2

PLUG

gear cover, Ref. 1959188C1

2шт.

3

200420A1

O-RING

cover, not shown

2шт.

4

202325A1

O-RING

cover, not shown

1шт.

5

1959190C1

PIN

clevis, start spring

1шт.

6

202326A1

GASKET

O-RING cover, not shown

1шт.

7

125825A1

GASKET

gear cover

1шт.

8

126374A1

CAPTIVE WASHER SCREW

with lockwasher

2шт.

9

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

hex 8 - 1.25 x 70 mm

5шт.

10

221617A1

BOLT

with lockwasher

1шт.

11

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

hex, 8 - 1.25 x 80 mm

2шт.

12

126376A1

CAPTIVE WASHER SCREW

with lockwasher

3шт.

14

1959162C1

LOCK WASHER

lock, special

9шт.

15

126373A1

SPRING WASHER

WASHER flat

1шт.

16

126377A1

PIPE

ADAPTER filter

1шт.

17

126124A1

WASHER

flat, special

1шт.

18

126385A1

FILTER, ELEMENT

FILTER oil, cartridge

1шт.

19

126378A1

SPRING

compression

1шт.

20

126379A1

SEAT, VALVE

SEAT valve

1шт.

21

126380A1

BALL

spring

1шт.

22

126381A1

FLANGE

water return

1шт.

23

126382A1

GASKET

flange

1шт.

24

1959215C1

BOLT

hex, with lock washer

3шт.
