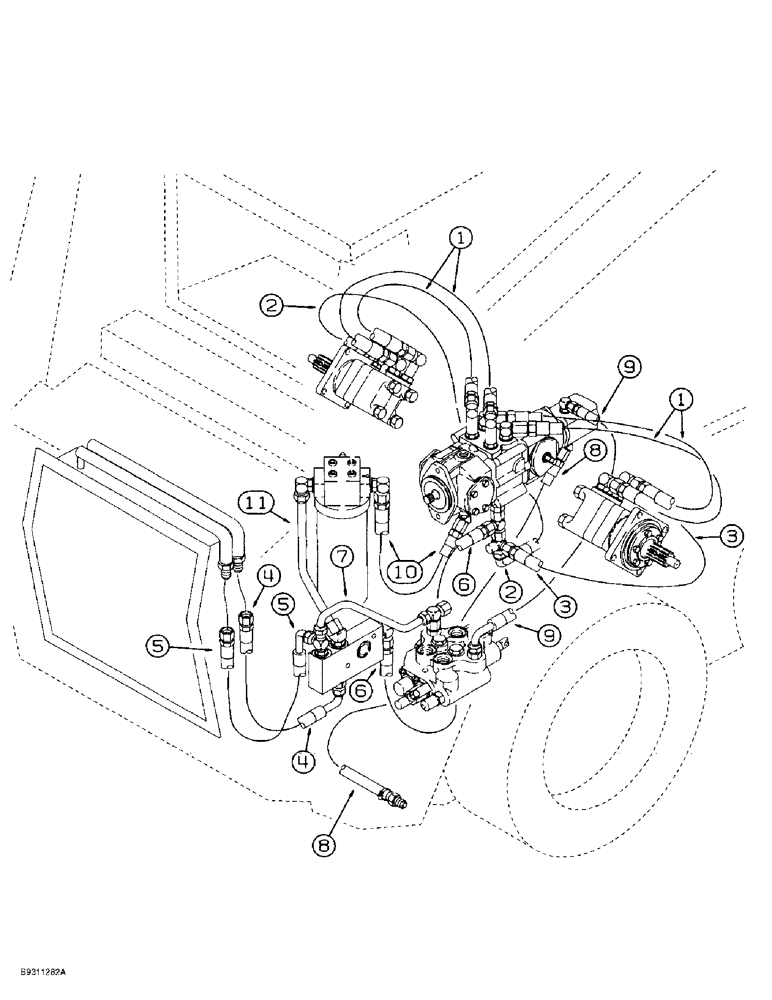

Запчасти Case 1838 (1-14) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS (00) - PICTORIAL INDEX

1

Hose at Drive Motors to Tandem Pump, 6-24

1шт.

2

Hose at Left-Hand Drive Motor to Tee, 6-24

1шт.

3

Hose at Right-Hand Drive Motor to Tee, 6-24

1шт.

4

Hose from Oil Cooler, 8-14

1шт.

5

Hose to Oil Cooler, 8-14

1шт.

6

Hose at Manifold Check Valve to Tee, 8-14

1шт.

7

Tube at Manifold Check Valve to Loader Control Valve, 8-14

1шт.

8

Hose at Gear Pump to Hydraulic Tank, 8-16

1шт.

9

Hose at Loader Control Valve to Gear Pump, 8-16

1шт.

10

Hose at Hydraulic Filter to Tandem Pump, 8-16

1шт.

11

Tube at Check Valve Manifold to Hydraulic Oil Filter, 8-16

1шт.
