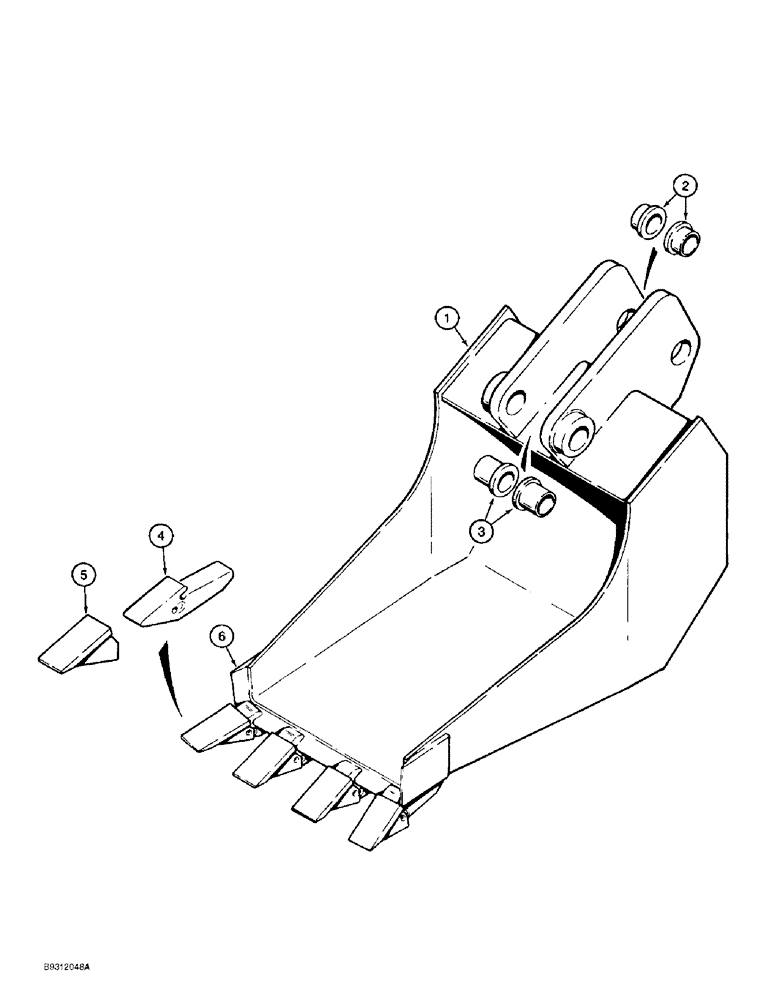

Запчасти Case 1838 (9-50) - BACKHOE BUCKETS, D100 OR D100XR BACKHOE, BELLHOLE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

H905109

BUCKET bellhole, order from Machinery Price List, 305 mm, 12 inch, Includes Ref. 2-6

1шт.

2

H50823

BUSHING

cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

4

H61283

TOOTH

SHANK tooth

4шт.

5

T41166

TOOTH

POINT tooth

4шт.

6

H61424

HALF BLADE

EDGE cutting, 305 mm, 12 inch bucket

1шт.

1

H905117

BUCKET bellhole, order from Machinery Price List, 457 mm, 18 inch, Includes Ref. 2-6

1шт.

2

H50823

BUSHING

cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

4

H61283

TOOTH

SHANK tooth

4шт.

5

T41166

TOOTH

POINT tooth

4шт.

6

H61432

HALF BLADE

EDGE cutting, 457 mm, 18 inch bucket

1шт.
