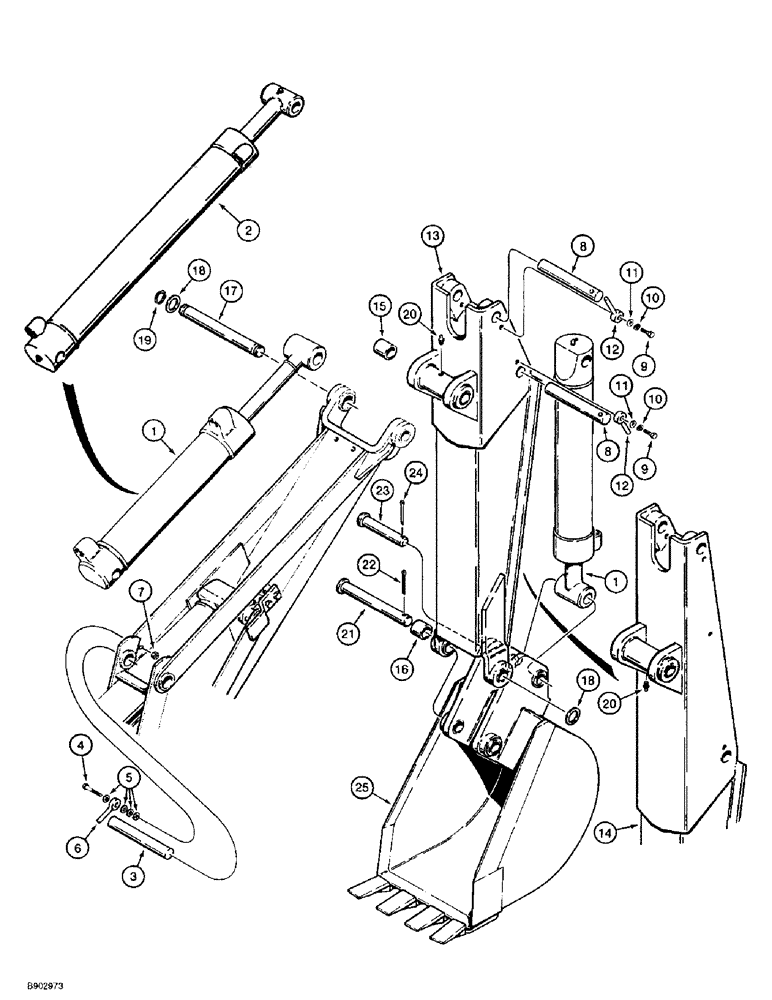

Запчасти Case 1838 (9-46) - BACKHOE DIPPER AND BUCKET, D100 OR D100XR BACKHOE (09) - CHASSIS/ATTACHMENTS

1

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY, bucket, 76 mm, 3 inch ID x 372 mm, 14-5/8 inch stroke, used on D100 and D100XR backhoe, also dipper cylinder on D100 backhoe only, parts list Figure 8-54

2шт.

2

G109376

CYLINDER BLOCK

CYLINDER ASSEMBLY, dipper, 76 mm, 3 inch ID x 605 mm, 23-13/16 inch stroke, used with D100XR backhoe only, parts list Figure 8-56

1шт.

3

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN dipper cylinder closed, Serial Range: end-boom

1шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, used with D100 backhoe only

1шт.

4

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used with D100XR backhoe only Hex, 3/8"-16 x 1 3/4", G5

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with D100XR backhoe only 3/8", SAE

4шт.

6

H313981

PIN

retaining

1шт.

7

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

8

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN dipper cylinder rod end to dipper and bucket cylinder closed, Serial Range: end-dipper

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, used with D100 backhoe only

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, used with D100XR backhoe only

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32", Used with D100 backhoe only

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with D100XR backhoe only 3/8", SAE

2шт.

12

H313981

PIN

retaining

2шт.

H514687

BOOM

DIPPER ASSEMBLY, backhoe, used with D100 backhoe only

1шт.

H645234

BOOM

DIPPER ASSEMBLY, backhoe, used on D100XR backhoe, Includes Ref. 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

DIPPER backhoe, used with H514687 dipper assembly only

1шт.

14

NSS

NOT SOLD SEPARAT

DIPPER backhoe, used with H645234 dipper assembly only

1шт.

15

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

dipper pivot

2шт.

16

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

17

H50658

PIVOT

PIN, Serial Range: boom-dipper

1шт.

18

195-81016

WASHER,1.140" x 1 7/8" x .032"

1шт.

19

103-11112

SNAP RING,#112, Ext

Ring, Snap, , Pin (Replaces F62235) #112, Ext

2шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

21

H50682

PIN

clevis, Serial Range: dipper-bucket

1шт.

22

432-2432

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), , Dipper to bucket pin, Used with D100 backhoe only 3/8" x 2"

1шт.

22

432-2428

COTTER PIN,3/8" x 1 3/4"

Pin, Split (Cotter), , Dipper to bucket pin, Used with D100XR backhoe only 3/8" x 1 3/4"

1шт.

23

H257048

PIN,28.5mm OD x 146.05mm L

mounting, bucket cylinder rod, Serial Range: end-bucket

1шт.

24

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), , Bucket cylinder pin 1/4" x 1 3/4"

1шт.

25

REF

INSTRUCTION

BUCKET backhoe, see Figures 9-48 and 9-50 for bucket options

1шт.
