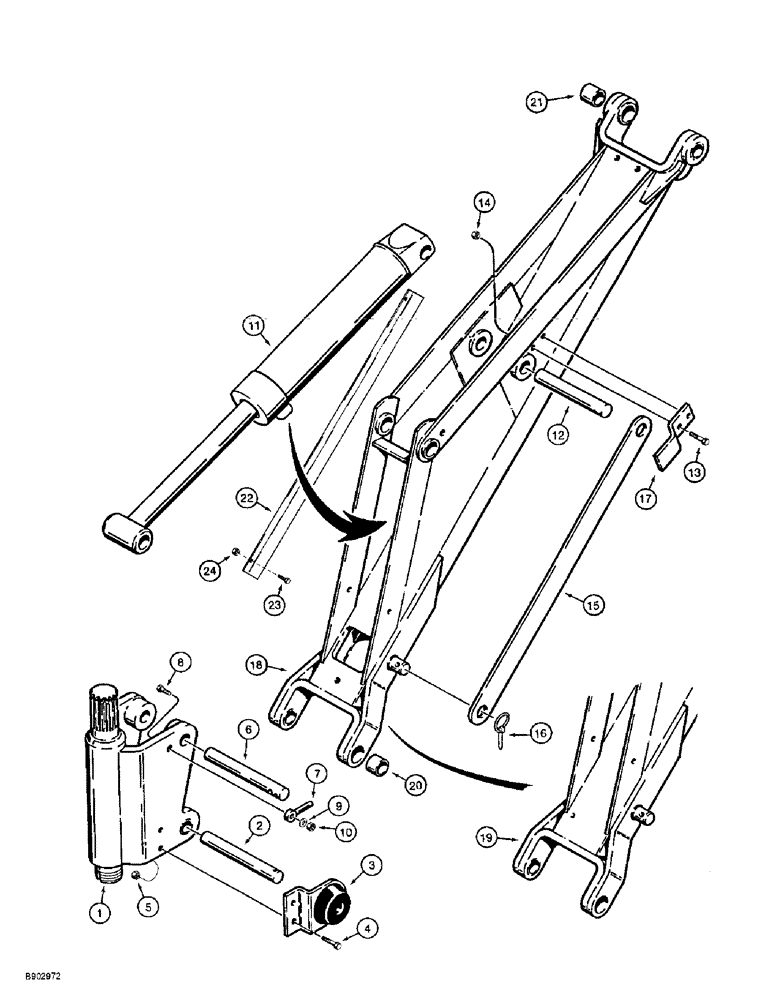

Запчасти Case 1838 (9-44) - BACKHOE SWING TOWER AND BOOM, D100 OR D100XR BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H672641

POST

TOWER ASSEMBLY, swing, backhoe, parts list Figure 9-40

1шт.

2

H50526

PIN

mounting, boom to swing tower

1шт.

3

H625756

BRACKET

BUMPER rubber, pin retainer and swing cushion

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

5

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, self locking, 1/2 inch NC, Replaces: 131-1182

4шт.

6

H56945

AXLE PIN

PIN mounting, boom cylinder rod end to swing tower

1шт.

7

H313981

PIN

retaining

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

1шт.

10

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

11

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY, boom, 76 mm, 3 inch ID x 372 mm, 14-5/8 inch stroke, parts list Figure 8-54

1шт.

12

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN closed end of boom, Serial Range: cylinder-boom

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

15

H56952

DRAG LINK

LINK transport

2шт.

16

A30338

PIN

lock

2шт.

17

H60616

AXLE PIN

RETAINER pin

2шт.

H514620

BOOM

ASSEMBLY, backhoe, used on D100 backhoe only

1шт.

H644922

BOOM

ASSEMBLY, backhoe, used on D100XR backhoe, Includes Ref. 18-21

1шт.

18

NSS

NOT SOLD SEPARAT

BOOM backhoe, used with H514620 boom assembly only

1шт.

19

NSS

NOT SOLD SEPARAT

BOOM backhoe, used with H644922 boom assembly only

1шт.

20

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

boom pivot

2шт.

21

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

22

H421800

FRAME

GUARD backhoe boom, used on D100XR backhoe only

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch, Used on D100XR backhoe only

4шт.

24

230-4215

NUT,5/16"-18, GA

NUT hex, self locking, 5/16 inch NC, Used on D100XR backhoe only

4шт.
