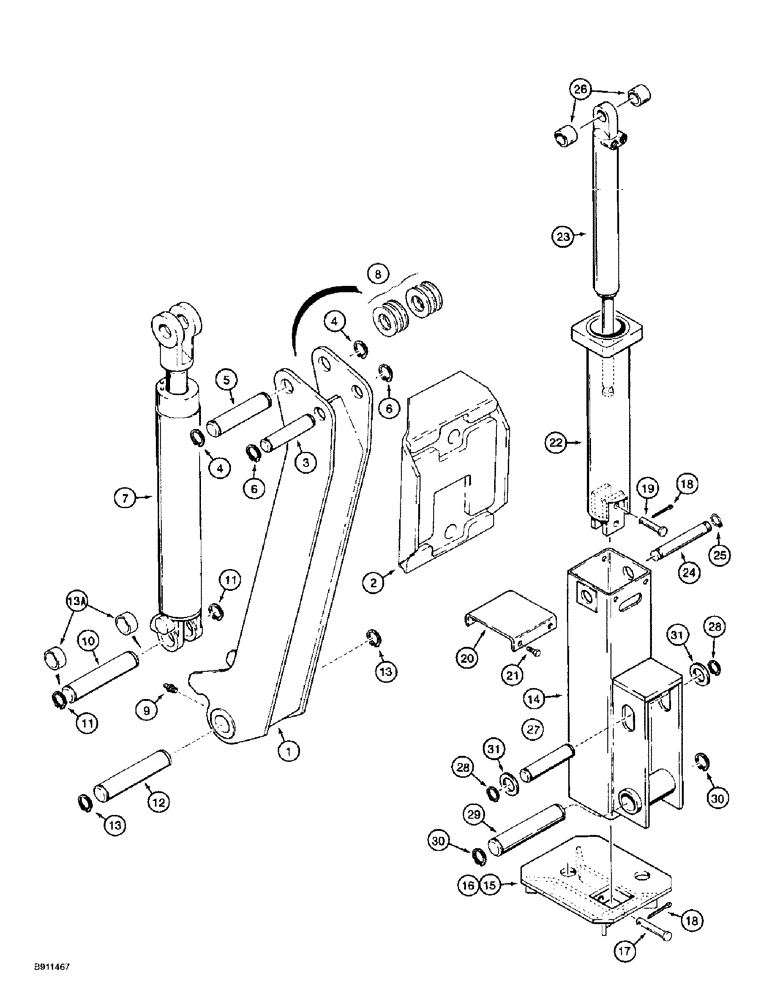

Запчасти Case 1838 (9-42) - BACKHOE STABILIZERS, D100 OR D100XR BACKHOE, FOLD DOWN STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

H674650

STABILIZER

backhoe, fold down

2шт.

2

H434430

LARGE PLATE

PAD stabilizer cast

2шт.

3

H434379

PIN,28.63mm OD x 151mm L

, Serial Range: stabilizer-pad

2шт.

4

103-16125

SNAP RING,#125, Ext

Ring, Snap, (Replaces D26918) #125, Ext

4шт.

5

H434380

PIN

, Serial Range: cylinder-stabilizer

2шт.

6

103-16112

SNAP RING,#112, Ext

Ring, Snap, (Replaces H758896R) #112, Ext

4шт.

7

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY, stabilizer, 76 mm, 3 inch ID x 406 mm, 16 inch stroke, parts list Figure 8-58

2шт.

8

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

10

H434381

PIN,31.8mm OD x 31.8mm L

mounting, cylinder to backhoe frame

2шт.

11

103-16125

SNAP RING,#125, Ext

Ring, Snap, (Replaces D26918) #125, Ext

4шт.

12

H434382

PIN,38.15mm OD x 204mm L

mounting, stabilizer to backhoe frame

2шт.

13

D25279

SNAP RING,M35, Int

RING snap

4шт.

13a

103502A1

SPECIAL NUT

SPACER cylinder pin to backhoe frame, 38.5 x 42 x 23 mm

4шт.

14

H674844

STABILIZER

backhoe, outer, Vertical

2шт.

15

H514570

PAD

stabilizer, right hand, Vertical

1шт.

16

H514562

PAD

stabilizer, left hand, Vertical

1шт.

17

H120683

PIN,15.88mm OD x 94.06mm L

inner stabilizer to stabilizer pad, Replaces: H31161, Vertical

2шт.

18

432-816

COTTER PIN,1/8" x 1"

vertical stabilizer 1/8" x 1"

4шт.

19

H51870

PIN

stabilizer cylinder to inner stabilizer, Vertical

2шт.

20

H438853

COVER

stabilizer, Vertical

2шт.

21

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4", Vertical Stabilizer

8шт.

22

H514554

STABILIZER

backhoe, inner, Vertical

2шт.

23

H514117

CYLINDER BLOCK

CYLINDER ASSEMBLY, stabilizer, 51 mm, 2 inch ID x 305 mm, 12 inch stroke, parts list Figure 8-60, Vertical

2шт.

24

H50831

PIVOT PIN,28.57mm OD x 139.7mm L

PIN cylinder to stabilizer, Vertical

2шт.

25

103-11112

SNAP RING,#112, Ext

Ring, Snap, (Replaces F62235), vertical stabilizer #112, Ext

4шт.

26

H52068

SPACER

cylinder, Vertical Stabilizer

4шт.

27

H434381

PIN,31.8mm OD x 31.8mm L

mounting, stabilizer to backhoe frame, upper, Vertical

2шт.

28

103-16125

SNAP RING,#125, Ext

Ring, Snap, (Replaces D26918), Vertical stabilizer #125, Ext

4шт.

29

H434382

PIN,38.15mm OD x 204mm L

mounting, outer stabilizer to backhoe frame, lower, Vertical

2шт.

30

D25279

SNAP RING,M35, Int

RING snap, Vertical Stabilizer

4шт.

31

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch, Vertical Stabilizer

4шт.
