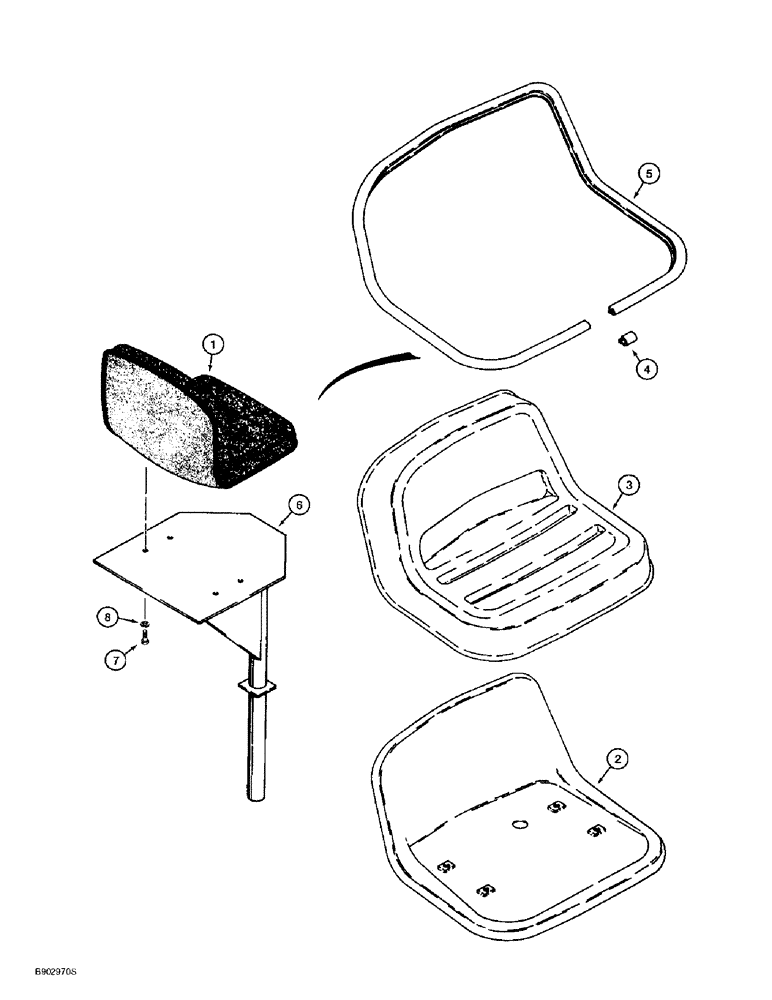

Запчасти Case 1838 (9-38) - BACKHOE SEAT AND MOUNTING PARTS, USED ON D100 OR D100XR BACKHOE ONLY (09) - CHASSIS/ATTACHMENTS

1

H436146

SEAT

ASSEMBLY, operator's, brown, used on models with brown trim

1шт.

1

179332A1

SEAT

ASSEMBLY, operator's, gray, used on models with gray trim, Includes Ref. 2, 6-8, and Seat Cushion Kit

1шт.

2

NSS

NOT SOLD SEPARAT

PAN seat

1шт.

REF

INSTRUCTION

KIT seat cushion, backhoe operator’s, no longer available, order seat assembly above, Includes Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP seat trim

1шт.

5

NSS

NOT SOLD SEPARAT

TRIM seat

1шт.

6

D134779

SUPPORT

POST seat mounting

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
