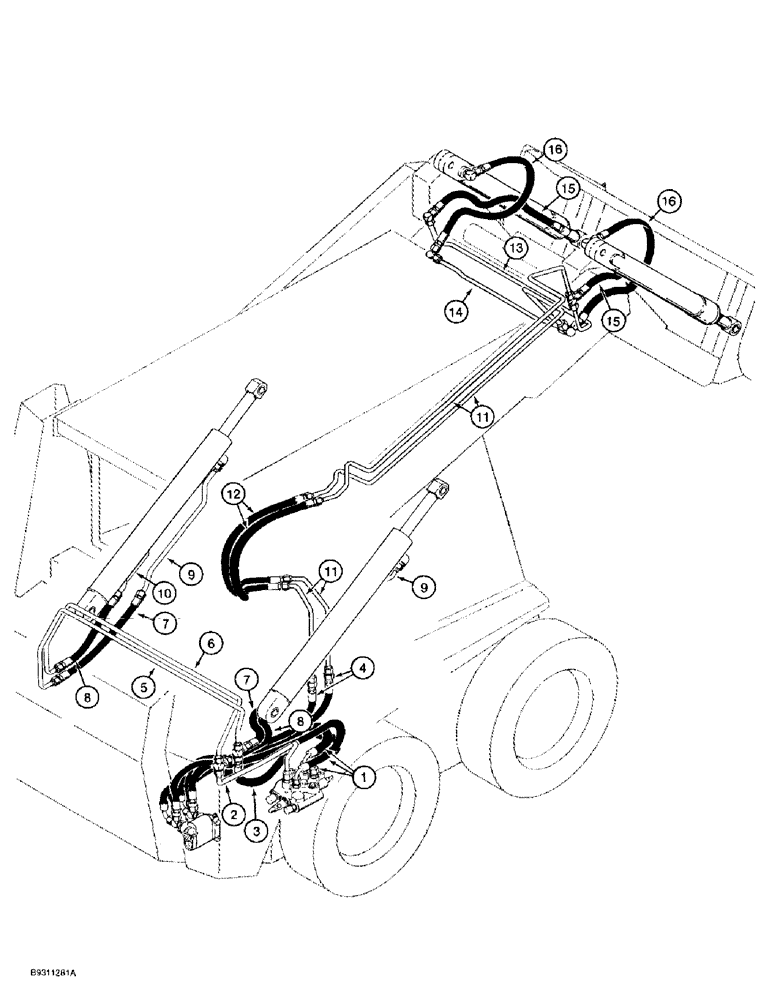

Запчасти Case 1838 (1-12) - PICTORIAL INDEX LOADER LIFT & BUCKET HYDRAULICS USED ON MODELS W/ SELF-LEVELING (00) - PICTORIAL INDEX

1

Hoses at Self-Leveling Valve to Control Valve, 8-4, 8-8

1шт.

2

Tube from Control Valve to Crossover Tube, 8-4

1шт.

3

Hose from Self-Leveling Valve to Crossover Tube, 8-4

1шт.

4

Hose from Self-Leveling Valve to Intermediate Tubes, 8-8

1шт.

5

Crossover Tube to Rod End of Lift Cylinders, 8-4

1шт.

6

Crossover Tube to Closed End of Lift Cylinders, 8-4

1шт.

7

Hoses to Rod End of Lift Cylinders, 8-4

1шт.

8

Hoses to Closed End of Lift Cylinders, 8-4

1шт.

9

Tube to Rod End of Lift Cylinders, 8-4

1шт.

10

Tube to Closed End of Lift Cylinders, 8-4

1шт.

11

Intermediate Loader Bucket Tubes, 8-8

1шт.

12

Hoses at Loader Arm, 8-8

1шт.

13

Crossover Tube to Rod End of Bucket Tilt Cylinders, 8-8

1шт.

14

Crossover Tube to Closed End of Bucket Tilt Cylinders, 8-8

1шт.

15

Hoses to Rod End of Bucket Tilt Cylinders, 8-8

1шт.

16

Hoses to Closed End of Bucket Tilt Cylinders, 8-8

1шт.
