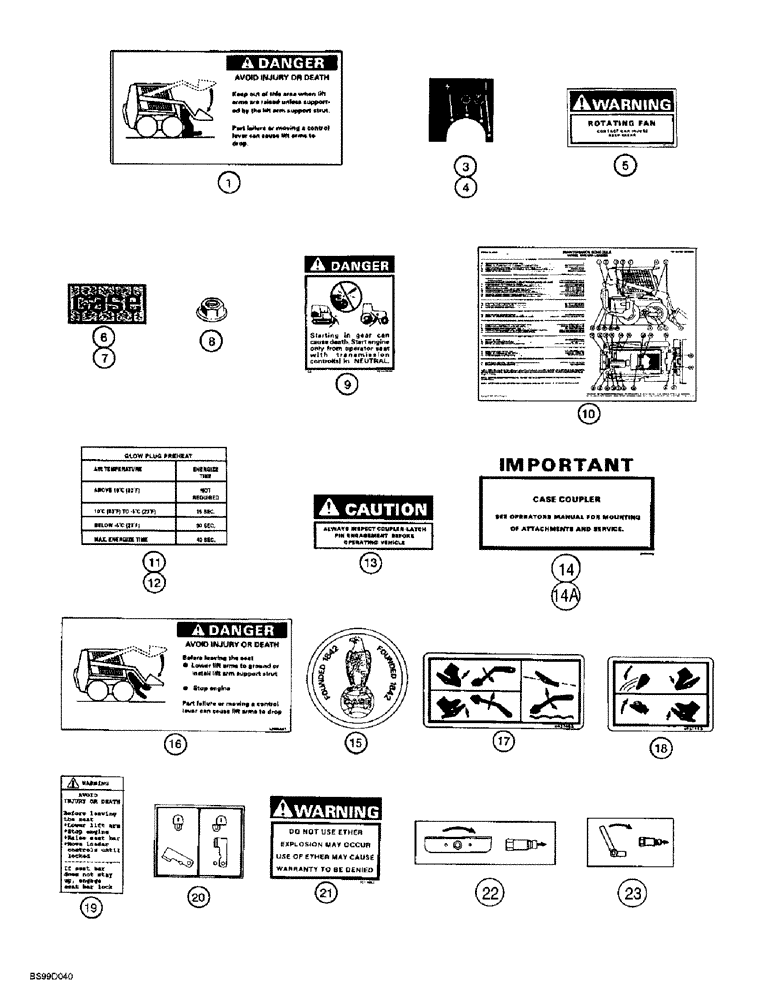

Запчасти Case 1838 (9-34) - DECALS* (09) - CHASSIS/ATTACHMENTS

1

120951A1

DECAL

Danger, keep out of this area, English

1шт.

2

D55216

PAD,2" x 9"

PAD anti-skid, floor plate and loader frame, not shown

4шт.

3

140219A1

DECAL

ignition switch pattern, graphic, used on models with brown trim

1шт.

4

140219A2

DECAL

ignition switch pattern, graphic, used on models with gray trim

1шт.

5

321-6686

DECAL

Warning, rotating fan, English

1шт.

6

321-4739

EMBLEM

Case, used on models with brown trim

1шт.

7

186989A1

EMBLEM

Case, used on models with gray trim

1шт.

8

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type

2шт.

9

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

10

132955A1

DECAL

maintenance schedule

1шт.

11

122309A1

DECAL

glow plug preheat, used on models with brown trim

1шт.

12

179826A1

DECAL

glow plug preheat, used on models with gray trim

1шт.

13

D137186

DECAL

Caution, always inspect coupler latch pin engagement

1шт.

14

D134680

DECAL

Important, Case coupler, English, no longer used, order 275310A1

1шт.

14a

275310A1

DECAL

Important, Case coupler, English, Replaces: D134680

1шт.

15

A180055

CAP ASSY.

INSERT Case Globe and Eagle, if used

1шт.

16

120950A1

DECAL

Danger, before leaving the seat, English

1шт.

17

H437462

DECAL

loader control, left foot control, if used

1шт.

18

H437463

DECAL

bucket control, right foot control, if used

1шт.

19

140124A1

DECAL

Warning, before leaving the seat, English

1шт.

20

140326A1

DECAL

seat bar lock

1шт.

21

321-6952

DECAL

Warning, do not use ether

1шт.

22

139618A1

DECAL

auxiliary hydraulics

1шт.

23

139617A1

DECAL

auxiliary hydraulics

1шт.

24

H439275

SEALING STRIP

STRIP anti skid, cut from H433994 bulk strip, auxiliary hydraulic pedal, not shown, 76 mm, 3 inch x 76 mm, 3 inch

2шт.

H433994

BAND

STRIP anti skid, bulk, 690 mm, 27 inch long

1шт.
