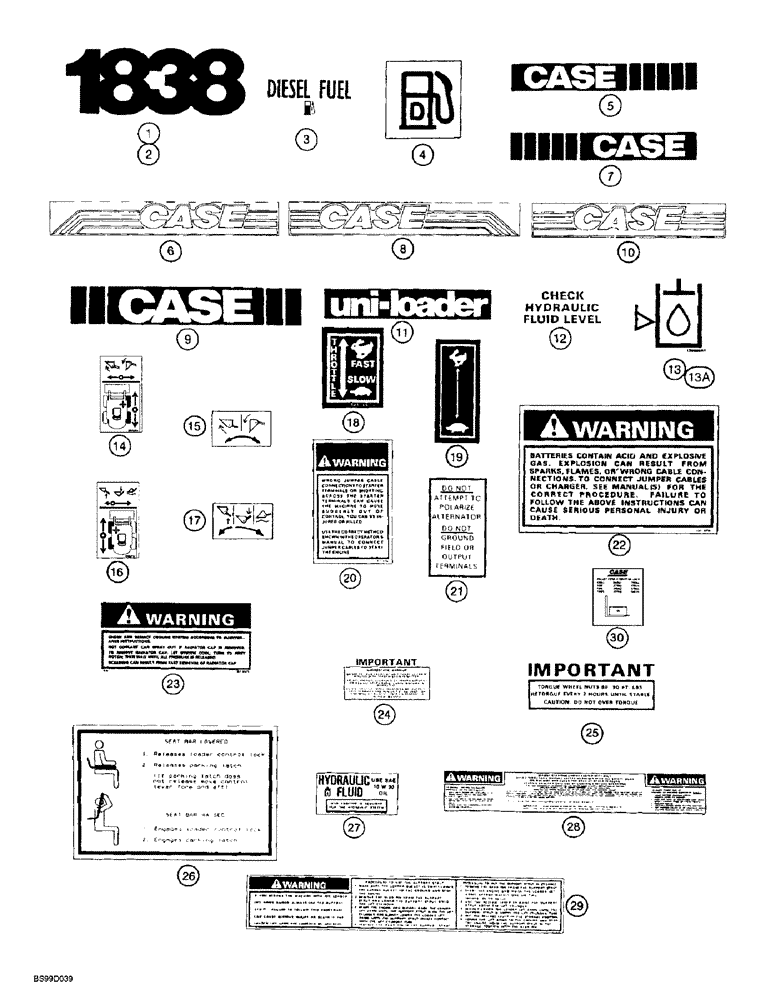

Запчасти Case 1838 (9-32) - DECALS* (09) - CHASSIS/ATTACHMENTS

1

132954A1

DECAL

1838, used on models with brown trim

2шт.

2

179125A1

DECAL

1838, used on models with gray trim

2шт.

3

321-6374

DECAL

diesel fuel, no longer available, order 13987A1

1шт.

4

139879A1

DECAL

diesel fuel, graphic, Replaces: 321-6374

1шт.

5

D138195

DECAL

Case, with treads, left hand side, 5 inch, 127 mm high, used on models with brown trim

1шт.

6

179180A2

DECAL

Case, with stripes, left hand side, 5 inch, 127 mm high, used on models with gray trim

1шт.

7

D138196

DECAL

Case, with treads, right hand side, 5 inch, 127 mm high, used on models with brown trim

1шт.

8

179181A2

DECAL

Case, with stripes, right hand side, 5 inch, 127 mm high, used on models with gray trim

1шт.

9

H427963

DECAL

Case, with treads, rear door, 5 inch, 127 mm high, used on models with brown trim

1шт.

10

179182A2

DECAL

Case, with stripes, 5 inch, 127 mm high, used on models with gray trim

1шт.

11

D123964

DECAL

uni-loader, brown, if used

2шт.

12

321-2733

DECAL

check hydraulic fluid level, if used

1шт.

13

139880A1

DECAL

check hydraulic fluid level, graphic, no longer used, order 259914A1

1шт.

13a

259914A1

DECAL

check hydraulic fluid level, graphic, Replaces: 139880A1

1шт.

14

256548A1

DECAL

bucket control, Replaces: 321-5850, if used

1шт.

15

139593A1

DECAL

bucket control, graphic

1шт.

16

256547A1

DECAL

loader arm control, Replaces: 321-5849, if used

1шт.

17

139592A1

DECAL

loader arm control, graphic

1шт.

18

321-4470

DECAL

throttle, slow/fast, no longer available, order Ref. 19

1шт.

19

178662A1

DECAL

throttle, slow-fast, graphic

1шт.

20

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

21

321-1061

DECAL

do not attempt to polarize alternator

1шт.

22

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

23

321-6672

DECAL

Warning, check and service cooling system

1шт.

24

321-4197

DECAL

Important, hydrostatic warm-up

1шт.

25

321-2973

DECAL

Important, torque wheel nuts, English, if used

1шт.

26

133392A1

DECAL

seat bar lowered/seat bar raised

1шт.

27

275322A1

DECAL

hydraulic fluid, use SAE 10-W-30 oil, HTO additive is required, Replaces: H437687

1шт.

28

321-6460

DECAL

Warning, before starting engine, fasten seat belt

1шт.

29

321-7029

DECAL

Warning, if you service the machine with loader lift arms raised

1шт.

30

251734A1

DECAL

capacity

1шт.
